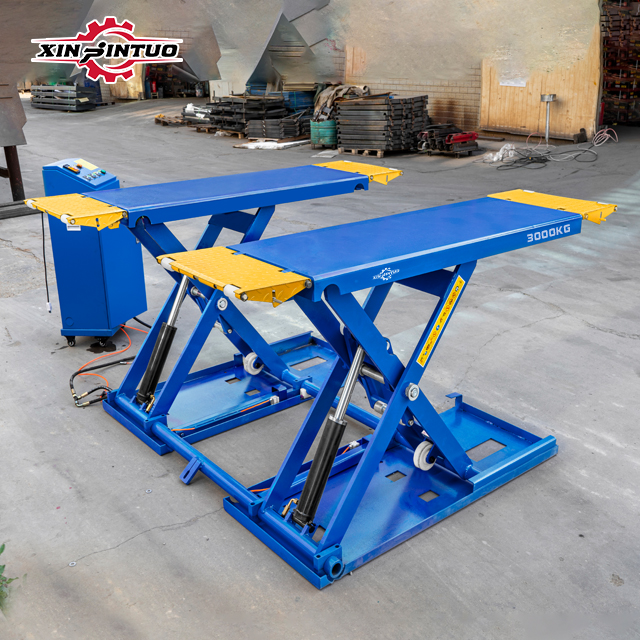

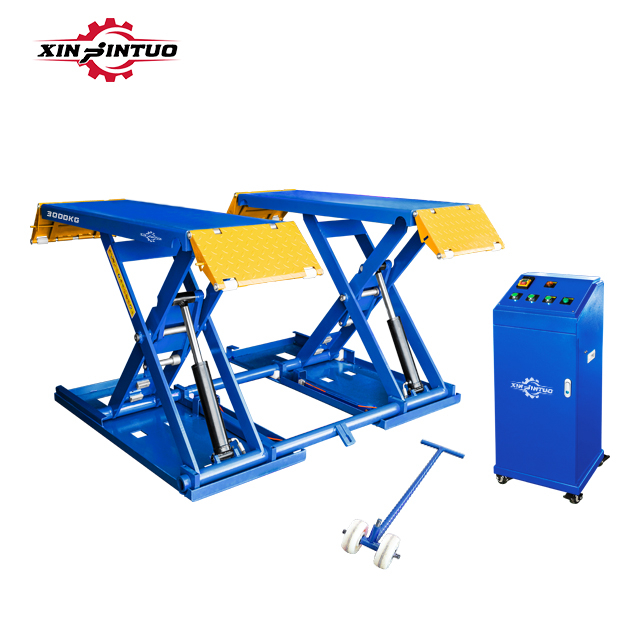

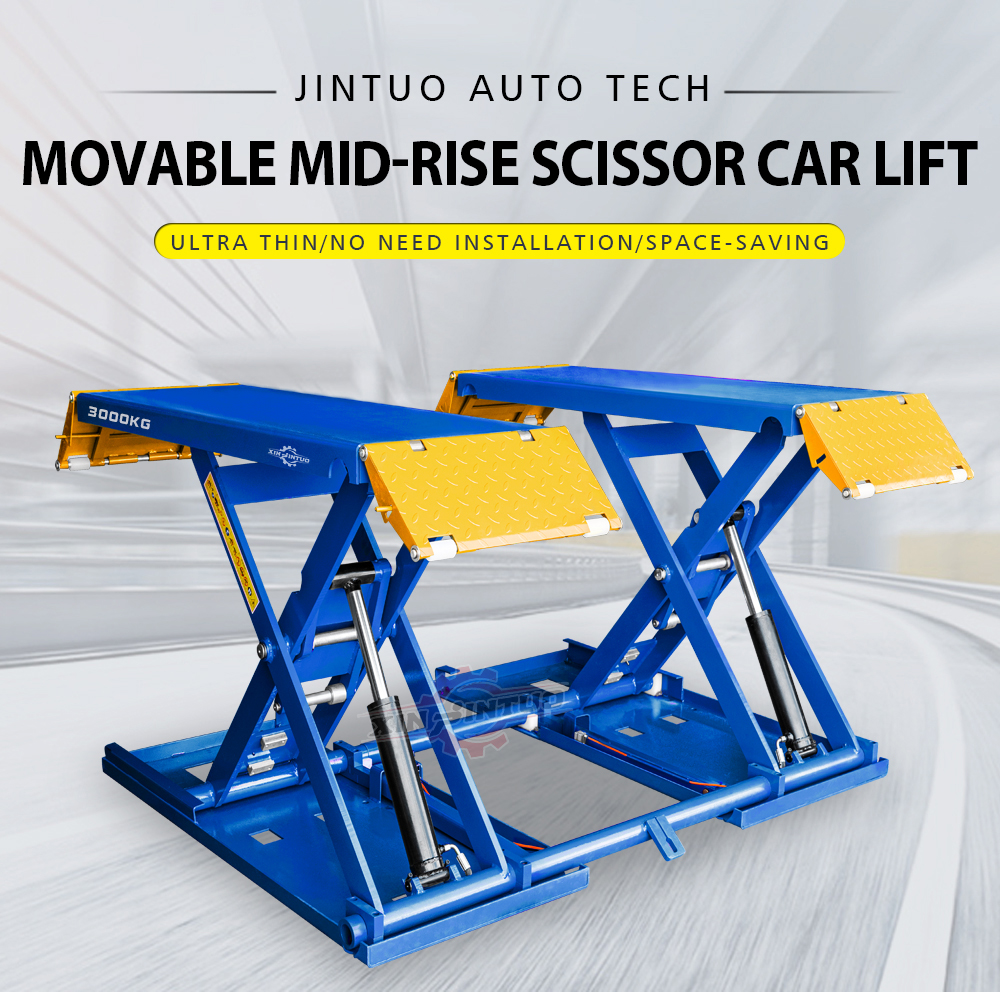

Jintuo Mobile Factory Direct Supply Mid Rise Super Thin Movable Small Machine Automotive Scissor Car Lift
-
JSL-3000P
-
Jintuo Auto Tech
Product parameters：
| Lifting Capacity | 3000KGS |
| Length of Platform | 1400MM |
| Width of Platform | 520MM |
| Lighting Height | 1000MM |
| Min. Height | 116MM |
| Width Between Platform | 810MM |
| Lifting Time | 30-50S |
| Gross Weight | 538KGS |
| Voltage | 220/380V |
| Motor Power | 2.2KW |
Product Description:

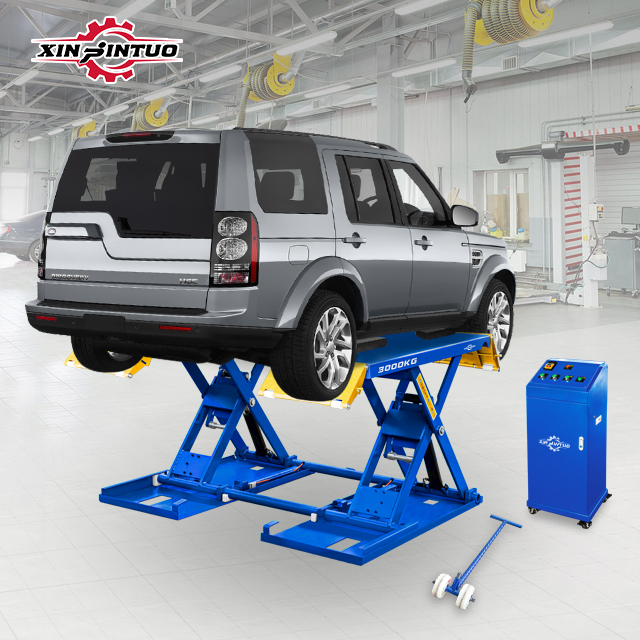

1. Movable designed. Equipped with portable puller with wheels, especially suitable for quick tire repair and vehicle repair; Movable independent control box, safer and more convenient to operate.

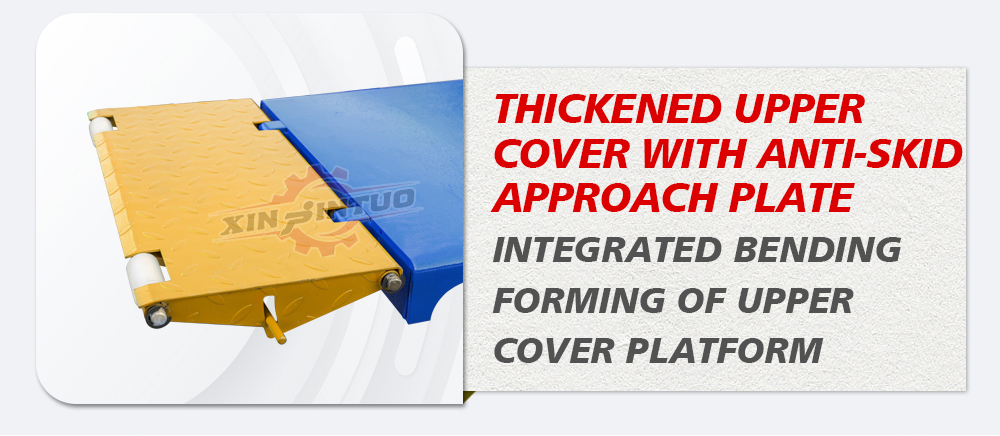

2. Super low platforms(116mm minimum height) and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.
3. Extendable platform suitable for more long chassis vehicles.

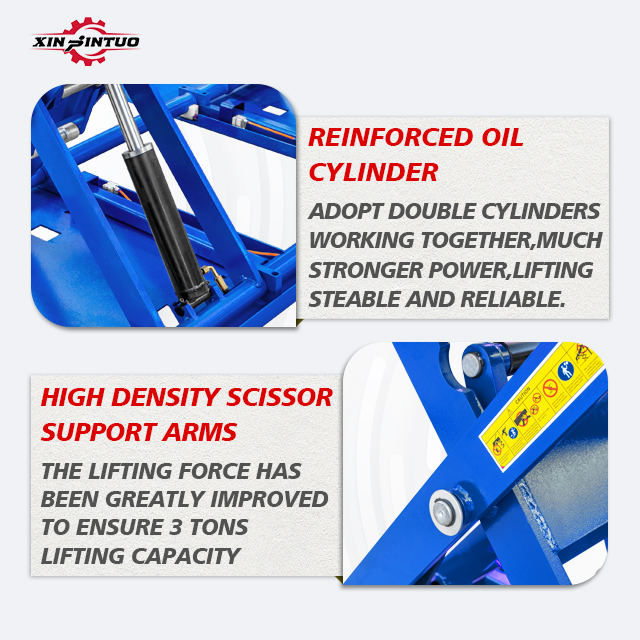

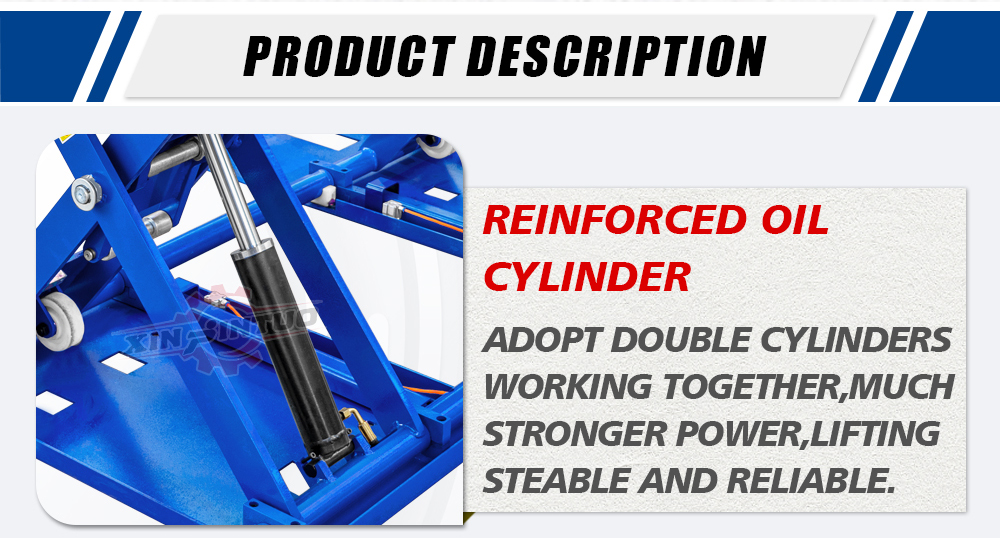

4. Two powerful hydraulic cylinders and high power pure copper core motor provide strong power.Lifting capacity 3000 kg, lifting height 1000 mm, for quick tire replacement and simple maintenance.

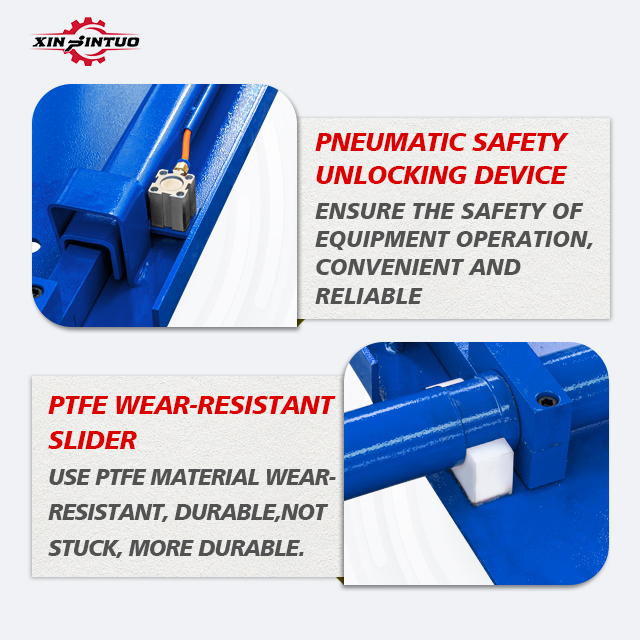

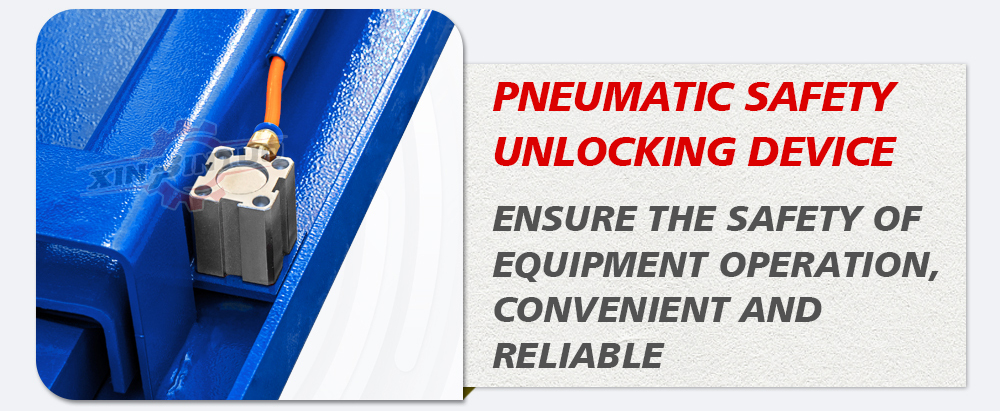

5. Pneumatic/Electrical safety lock release.Mechanical safety lock engaged automatically, with pneumatic release when lowering.
6. Surface shot blasting process ,electrostatic powder spraying, strong surface adhesion and durable powder coating.

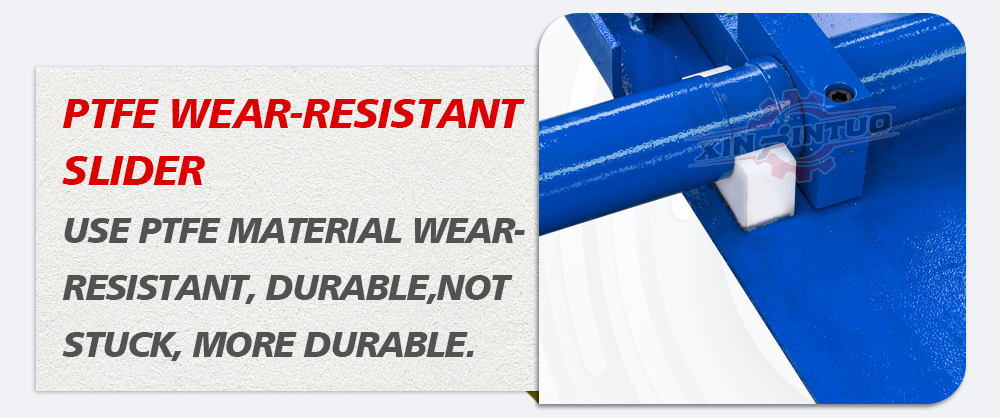

7. High polymer polyethylene slide blocks, wear-resistance.
8. Top quality with CE-certificate.
Please consult the product manager for more product functions and introductions!
