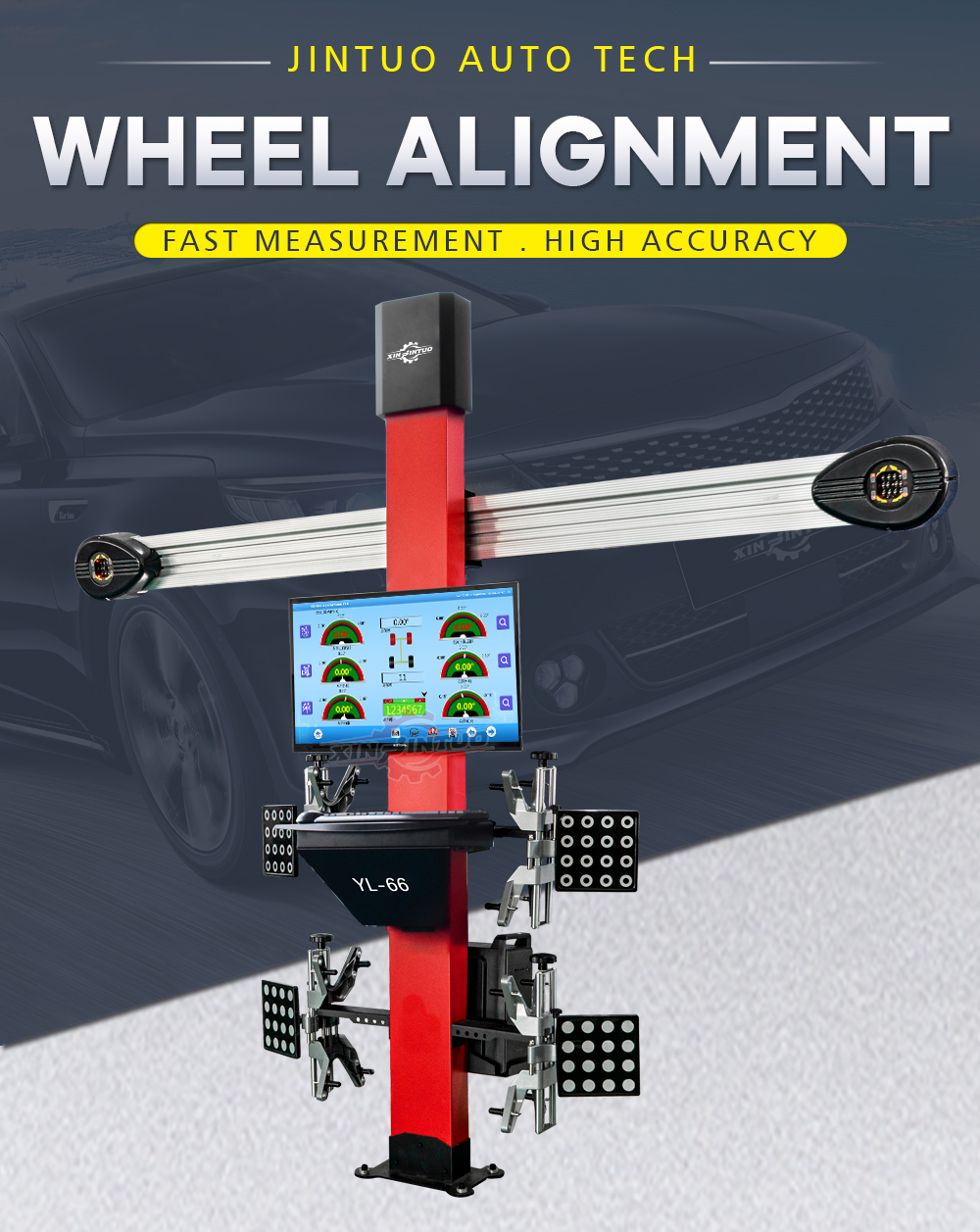

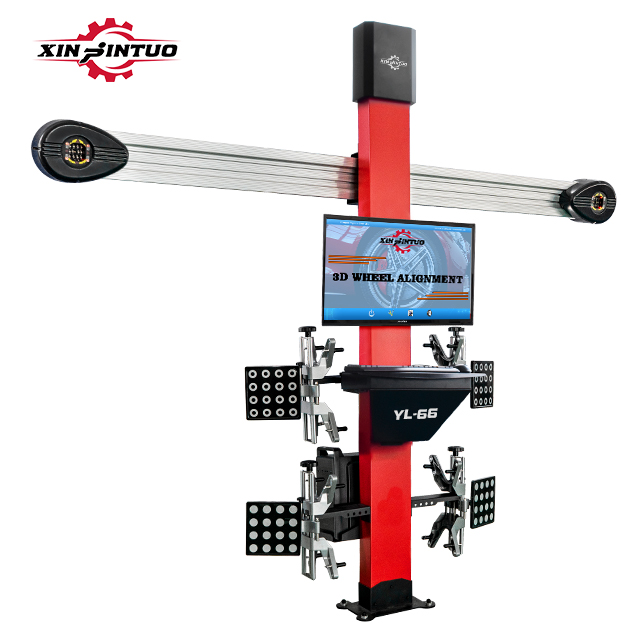

Jintuo YL-66 Four Wheel Alignment Machine for Sale
- Upgrade database by free permanently.

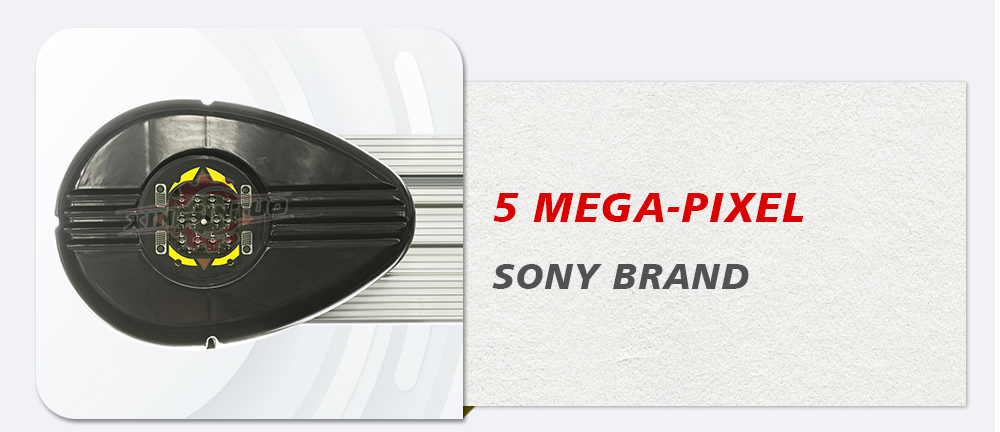

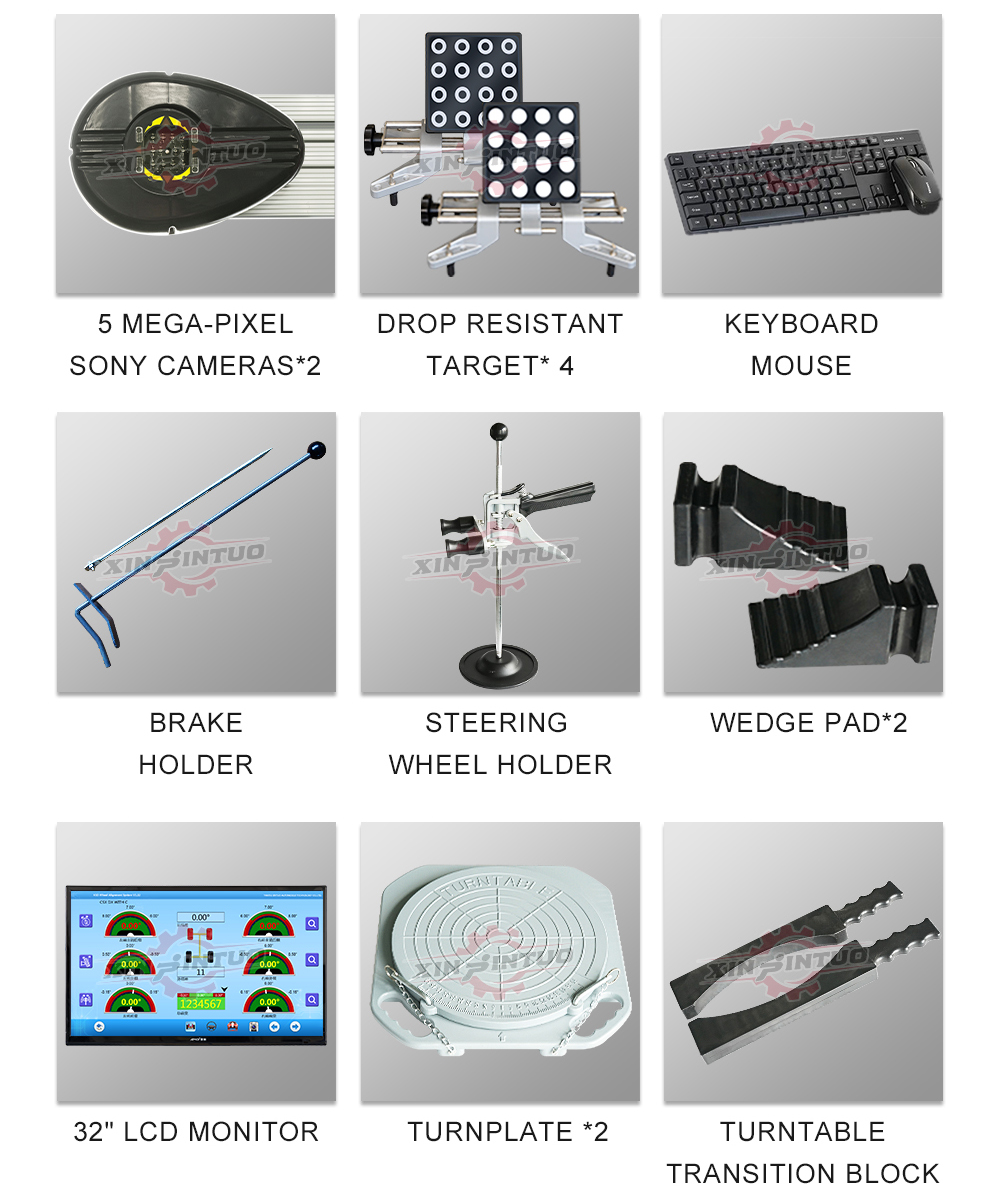

- Apply 5.0 mega pixels high definition SONY cameras.
- Exceed 20,000 database around the world.
- Apply high strength plastic target.
- Fast installation, suitable for all rims between 12"-25" .
-

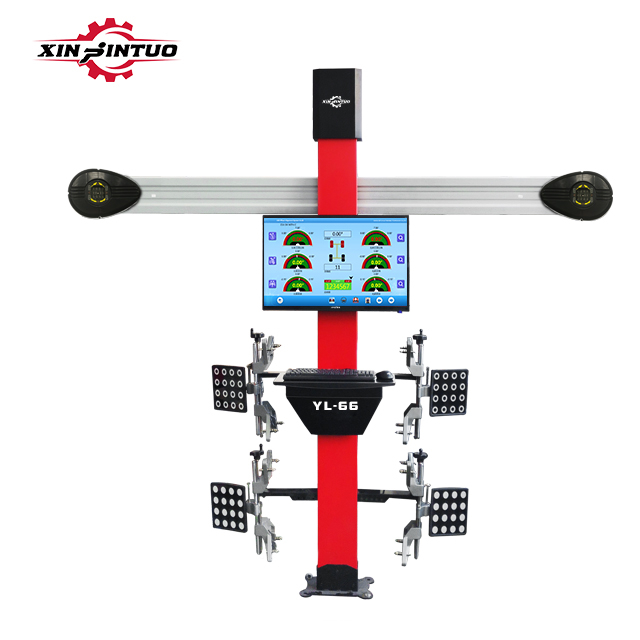

YL-66
-
Jintuo Auto Tech
Product parameters：
| MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
| TOTAL TOE-IN | ±0.01° | ±40° |
| EXTERNAL BEVEL | ±0.01° | ±45° |
| CASTER | ±0.02° | ±45° |
| S.A.I | ±0.02° | ±45° |
| THRUST ANGLE | ±0.01° | ±40° |
| SET BACK | ±0.01° | ±40° |
| MAX.STEERING ANGLE | ±0.02° | ±50° |
| WHEEL TRACK | ±2MM | 1219MM-2438MM |
| WHEEL BASE | ±2MM | 2006MM-4572MM |
Product Description:
1. Exceed 20,000 database around the world and with a lifetime update service.
2. Repeat measurement accuracy is ±0.02,which be a world's leading level.
3. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base,Wheel rolling redius.

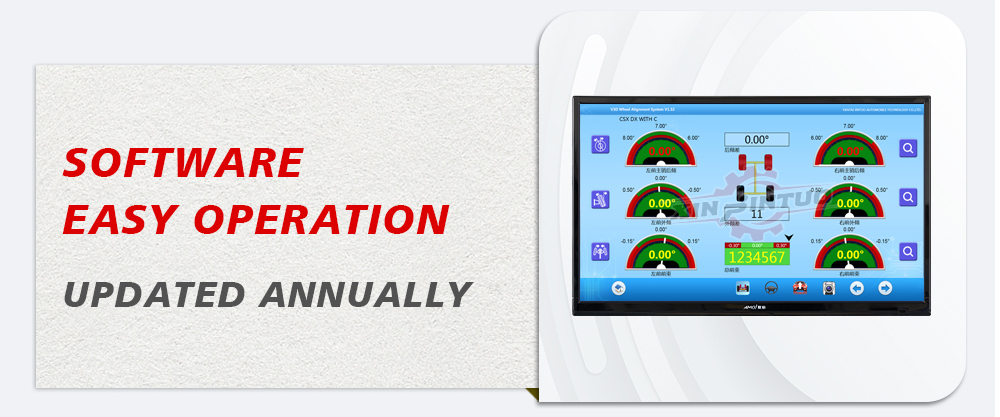

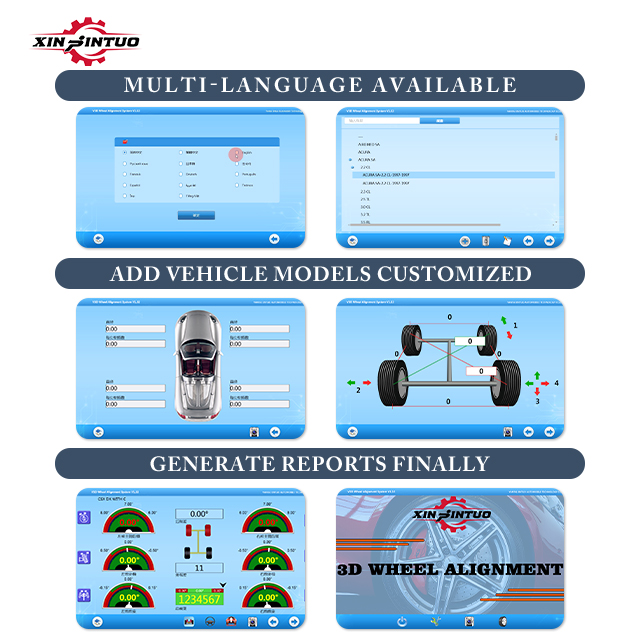

4. Humanized software design, animation video can be used to help technician more quickly complete the operation.

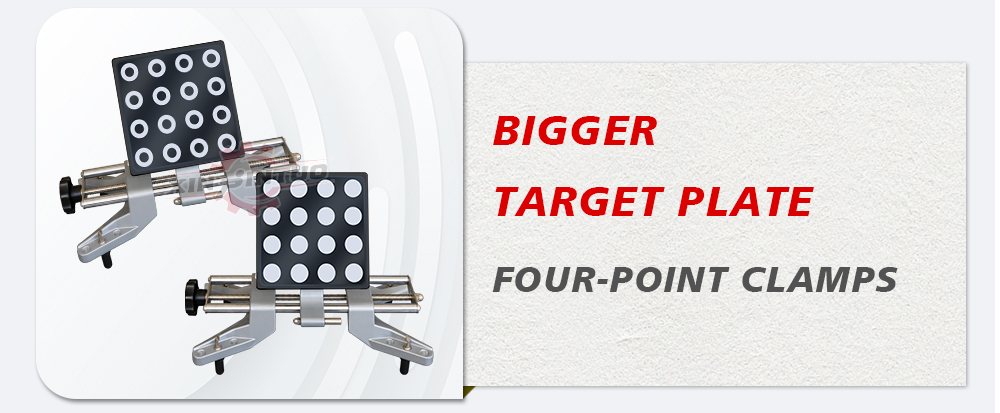

5. Apply high strength plastic target, which is lighter, thinner and stronger.
6. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get Software Feature.
7. Fast installation, suitable for all rims between 12"-25" . Which can install both on iron and aluminum wheel hub.
Please consult the product manager for more product functions and introductions!
