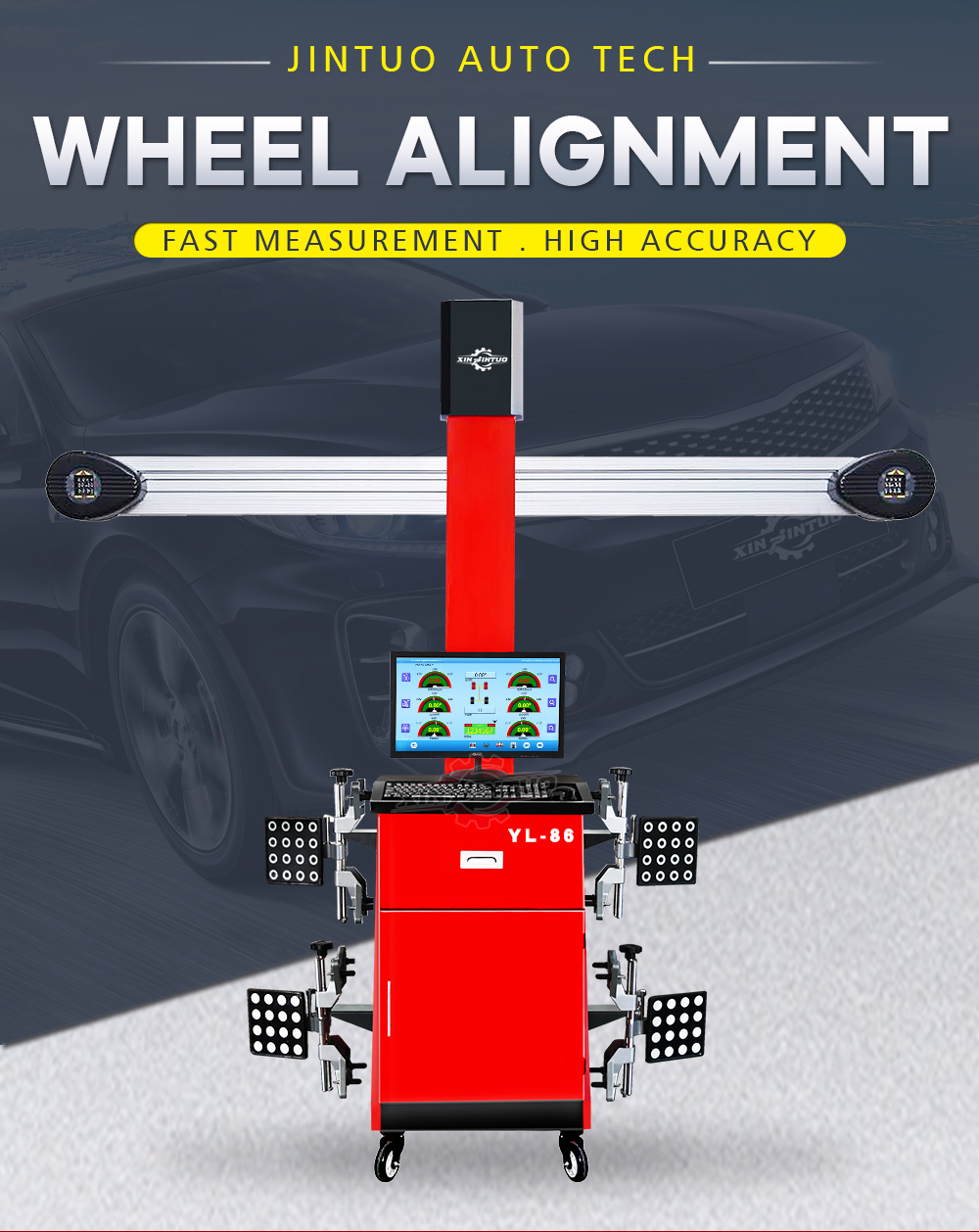

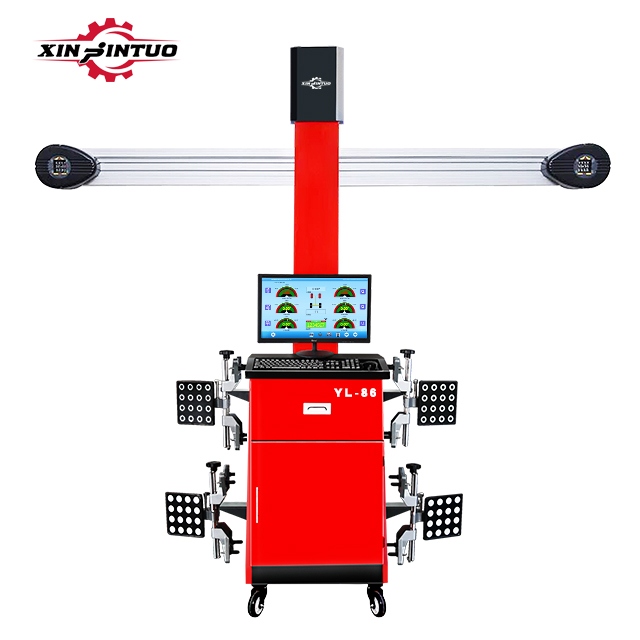

Jintuo YL-86 wholesale 3D Wheel Alignment Machine
- Operating platform can be freely moving.
- New design target plate, easy maintenance.
- 5 mega-pixel sony HD lens.
- Camera-to-turntable distance of up to 1500mm-2800mm.
- Add the models on your own.
- CE Certificed.
-
YL-86
-
Jintuo Auto Tech
Product parameters：
| MEASUREMENT ITEMS | MEASUREMENT ACCURACY | MEASUREMENT RANGE |
| TOTAL TOE-IN | ±0.01° | ±40° |
| EXTERNAL BEVEL | ±0.01° | ±45° |
| CASTER | ±0.02° | ±45° |
| S.A.I | ±0.02° | ±45° |
| THRUST ANGLE | ±0.01° | ±40° |
| SET BACK | ±0.01° | ±40° |
| MAX.STEERING ANGLE | ±0.02° | ±50° |
| WHEEL TRACK | ±2MM | 1219MM-2438MM |
| WHEEL BASE | ±2MM | 2006MM-4572MM |
Product Description:

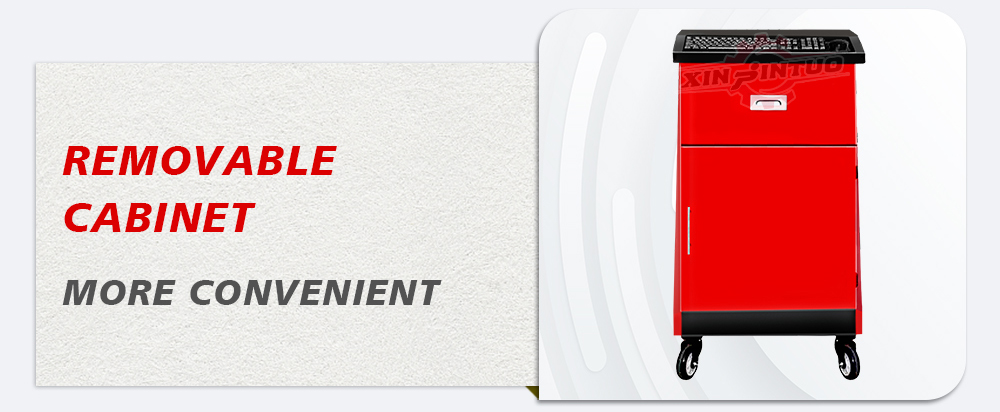

1. Operating platform can be freely moving, easy to view data from various angles.

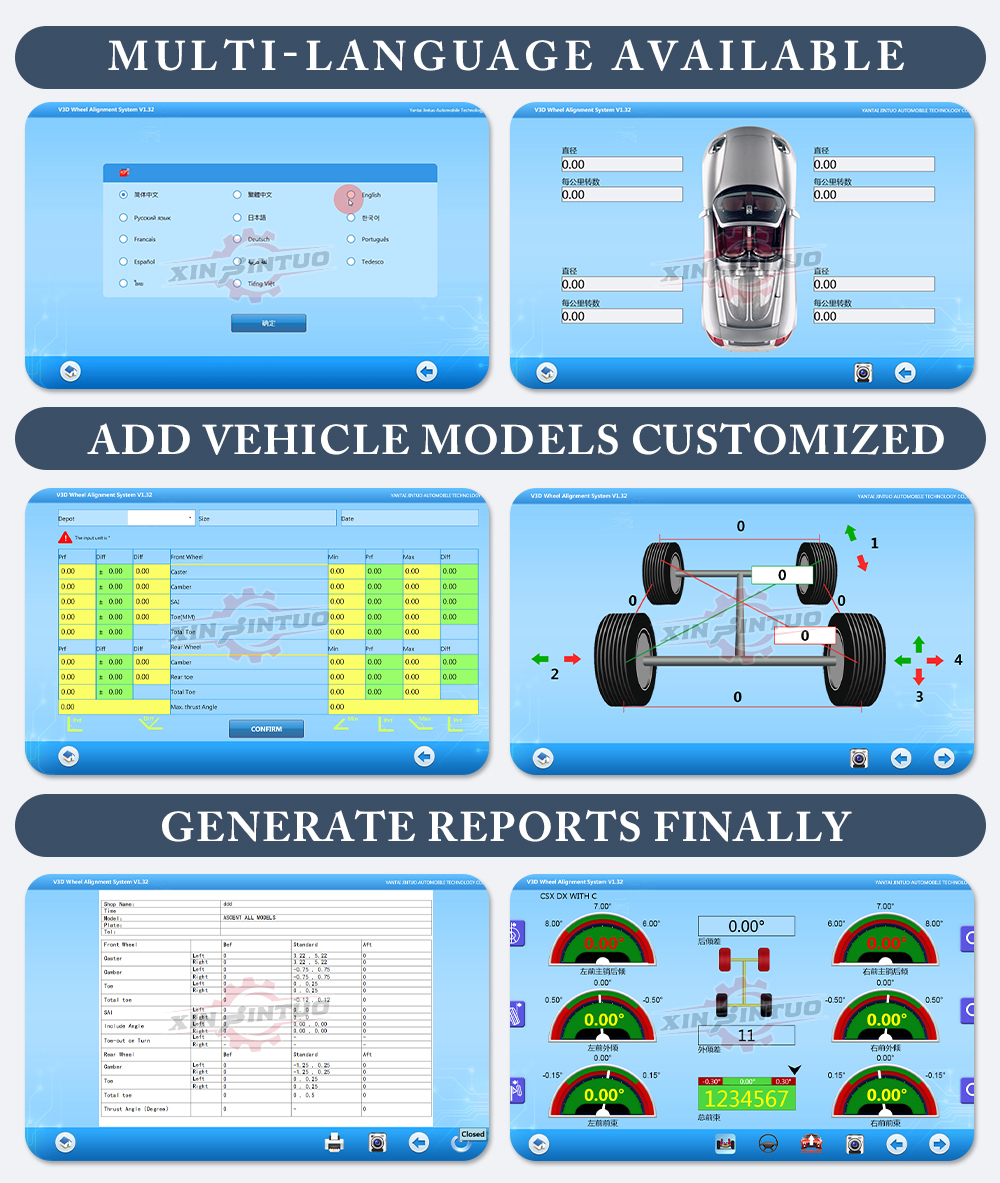

2. It supports over 100 car brands and over 50,000 models, together with the possibility for users to add the models on their own.

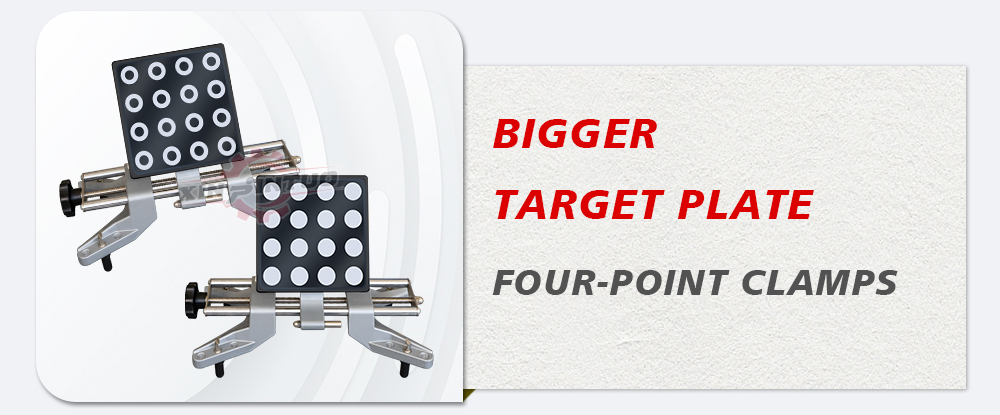

3. New design target plate, no electric circuit inside, easy maintenance.

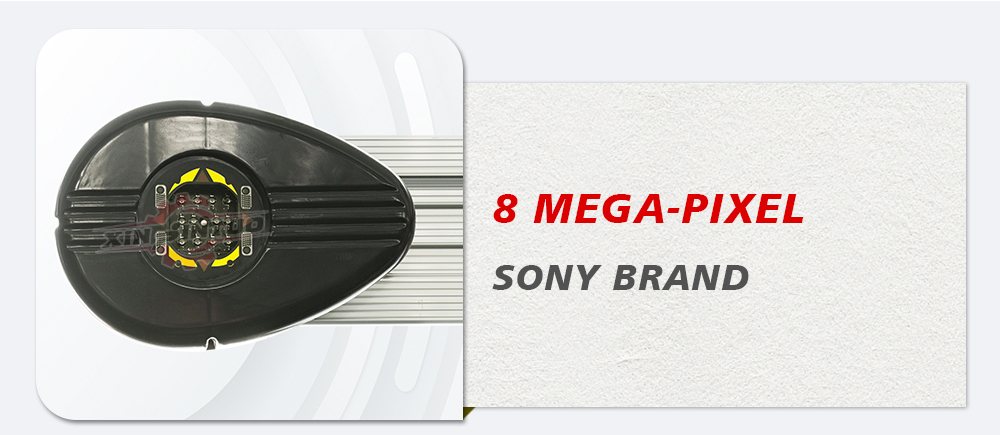

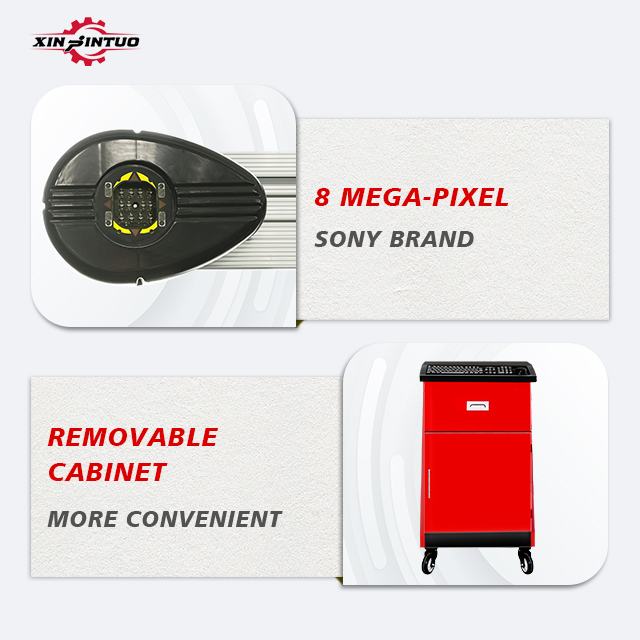

4. It is equipped with an industry-leading four wheel positioning optical system with a 5 mega-pixel sony HD lens and a camera-to-turntable distance of up to 1500mm-2800mm.There is no need to move thecamera, thus avoiding bumps and allowing a much longer service life.
5. Test data can be traced and with a printing function, the test data includes detailed parameters of the vehicle.

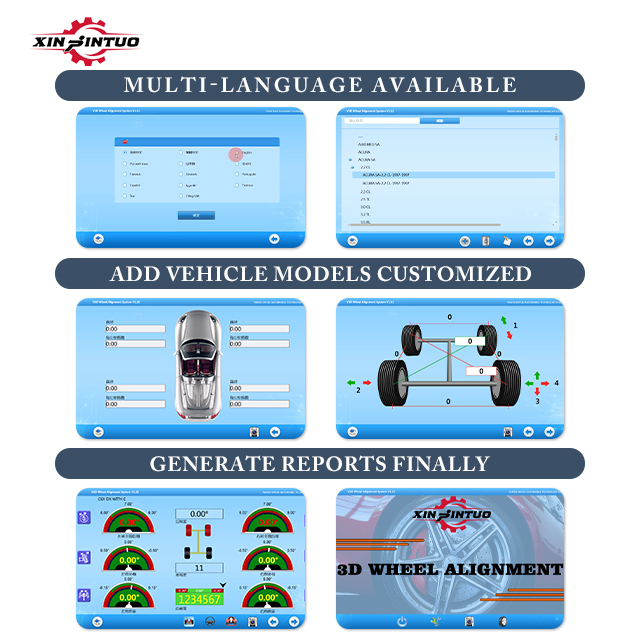

6. Our self-developed wheel alignment software with intellectual property rights and certification. It has been marketed in international for many years, with stable operation and convenient and fast operation.

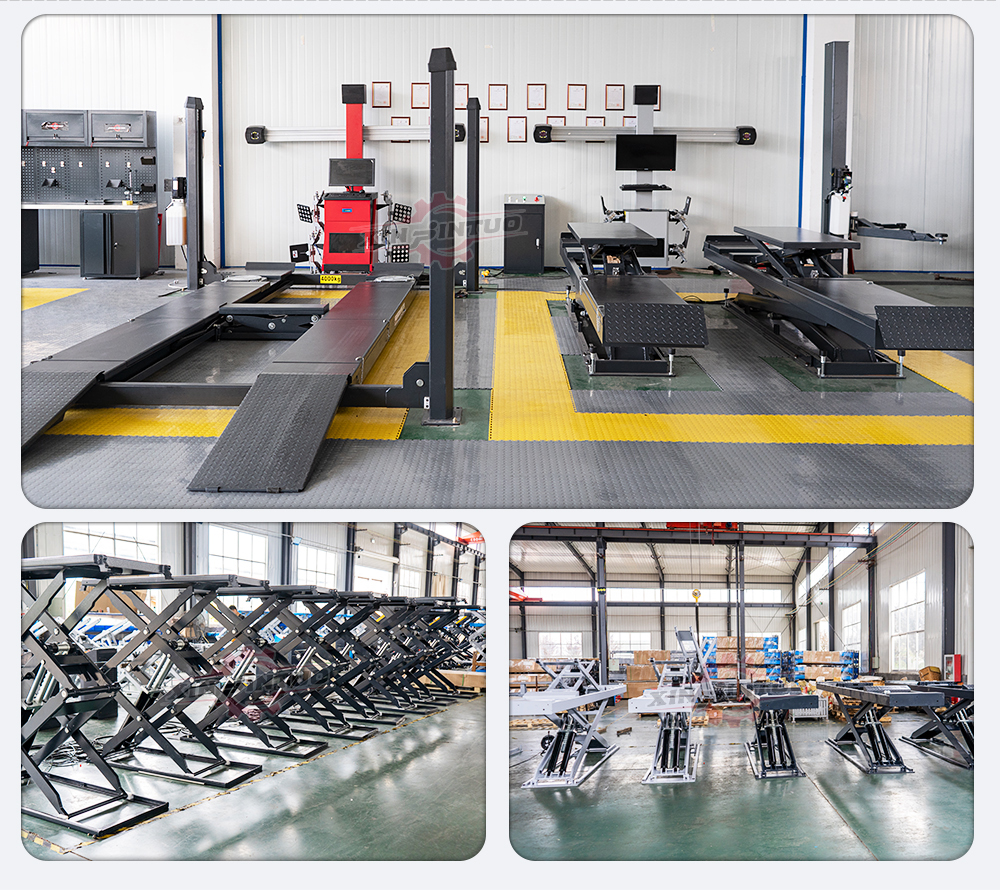

7. As the factory, we are the source enterprise, therefore you may enjoy better after-sales service.Most of the other traders are unable to provide stable services and accessories.
Please consult the product manager for more product functions and introductions!
