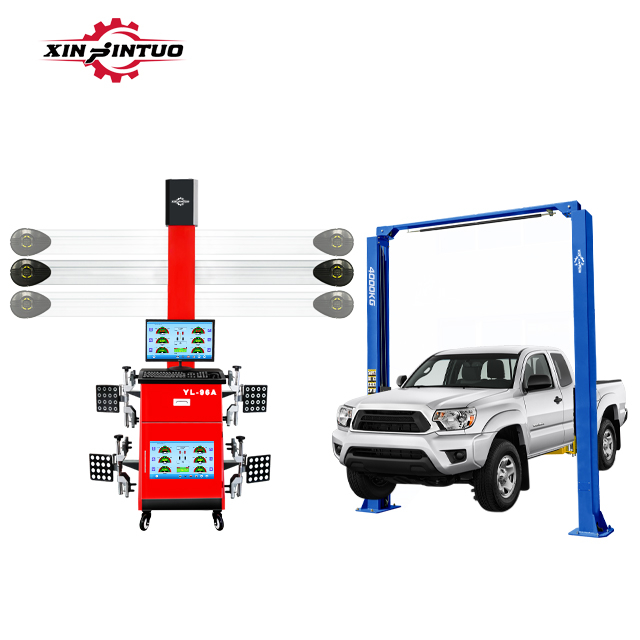

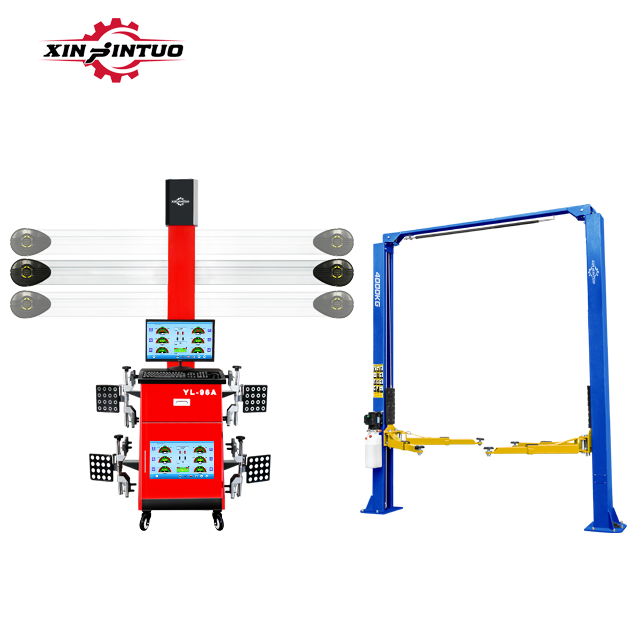

Xinjintuo Car Maintenance Workshop 3d Four Wheel Aligner Equipment Electric 2 Post Clear Floor Car Lift

  • JTL-4000CM+YL-96A

  • XinJintuo

Availability:

详情_01详情_02

Product parameters:

Wheel Alignment Machine
2 Post Car Lift
Measurement Items Measurement Accuracy Measurement Range Measurement Items Measurement Data
Total Toe  ±0.01° ±40° Lifting Capacity 4000Kgs

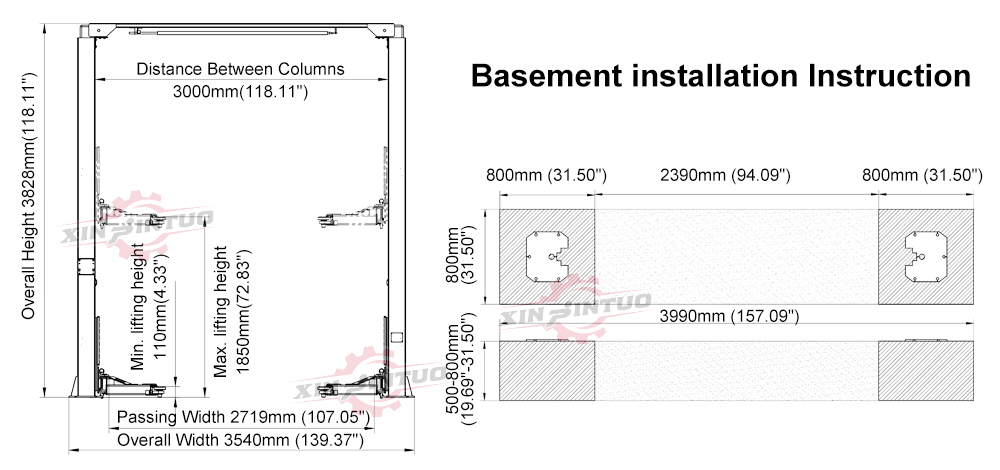

External Bevel ±0.01° ±45° Overall Height 3828MM
Caster ±0.02° ±45° Overall Width 3540MM
S.A.I ±0.02° ±45° Lighting Height 1850MM
Thrust Angle ±0.01° ±40° Drive Thru Width 2719MM
Set Back ±0.01° ±40° Motor Power
2.2KW
Max.Steering Angle ±0.02° ±50° Voltage 220/380V
Wheel Track ±2° 1219MM-2438MM Gross Weight
600Kgs

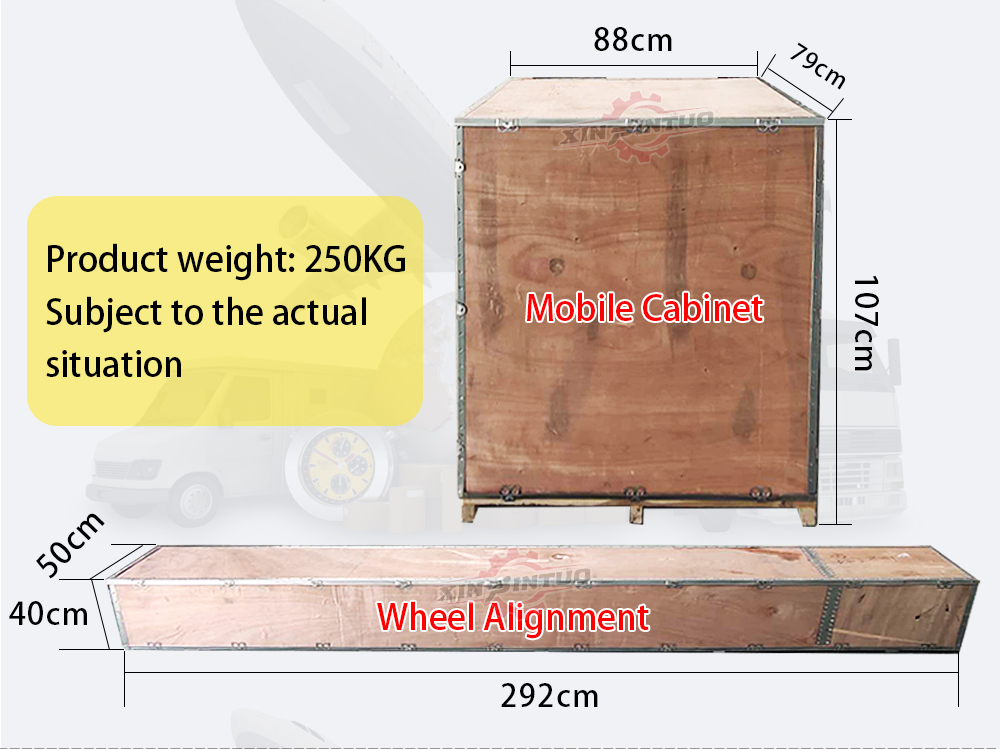

Wheel Base ±2° 2006MM-4572MM Packing Size 3800*530*800MM(1pc)

Product Description:

1. Suitable for four-wheel positioning. Strong horizontal adjustment ability, can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection.

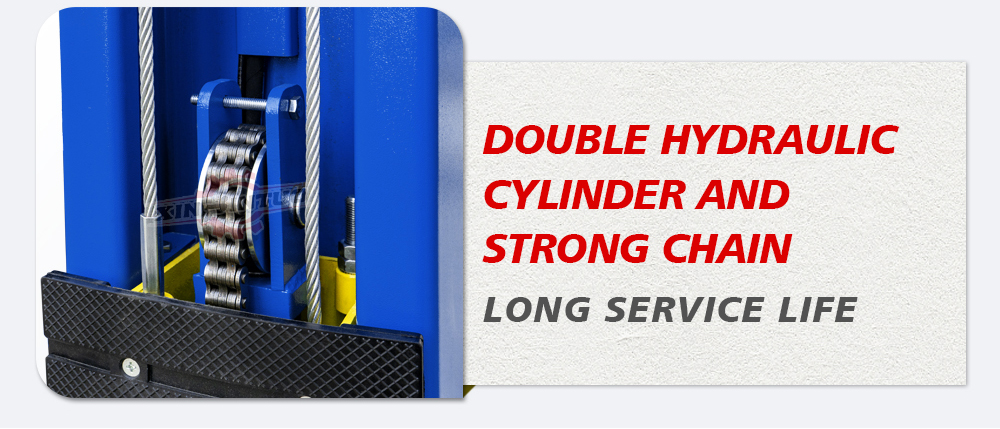

2. Double hydraulic cylinder chain drive. Double chain lift, greatly increase the service life of equipment.

3. Clear floor design makes under-vehicle service more convenient.

4. The steel wire rope balance system forces the car to move synchronously, lifting smoothly, and effectively prevents the vehicle from tilting.

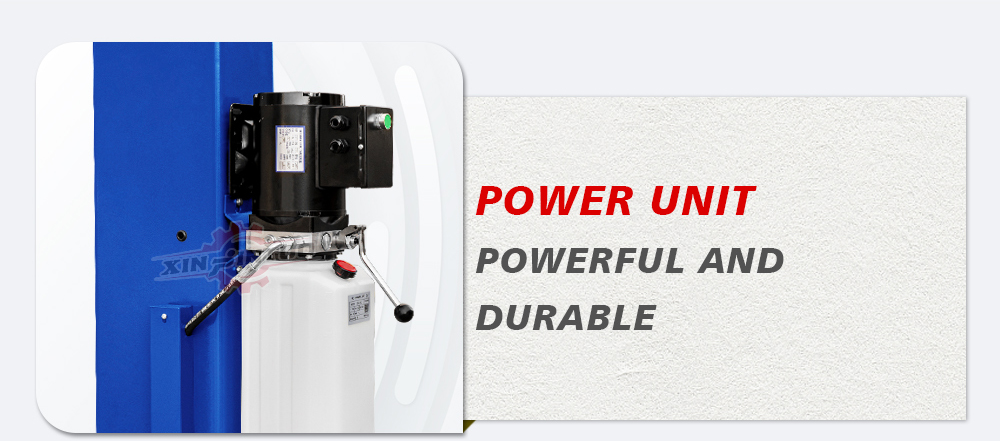

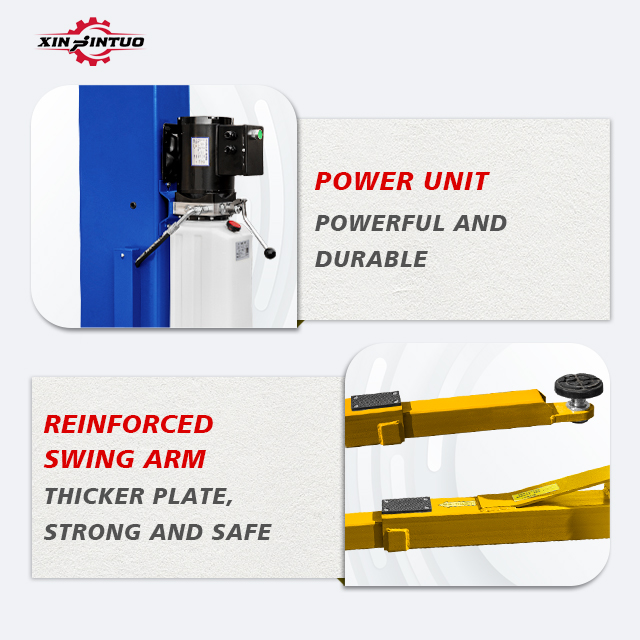

5. Pure copper motor, strong power. Electric hydraulic system, power is strong, durable, heat dissipation is more quickly to increase work efficiency.

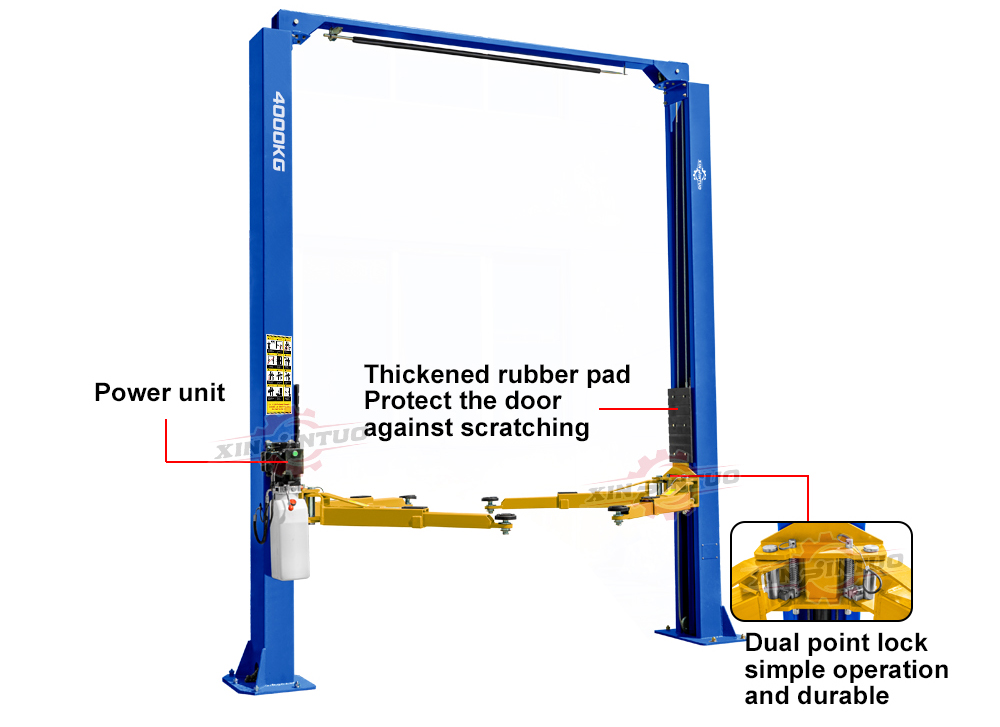

6. Thickened rubber pad to protect door. Thick rubber pads are installed on both sides to protect the door from rubbing.

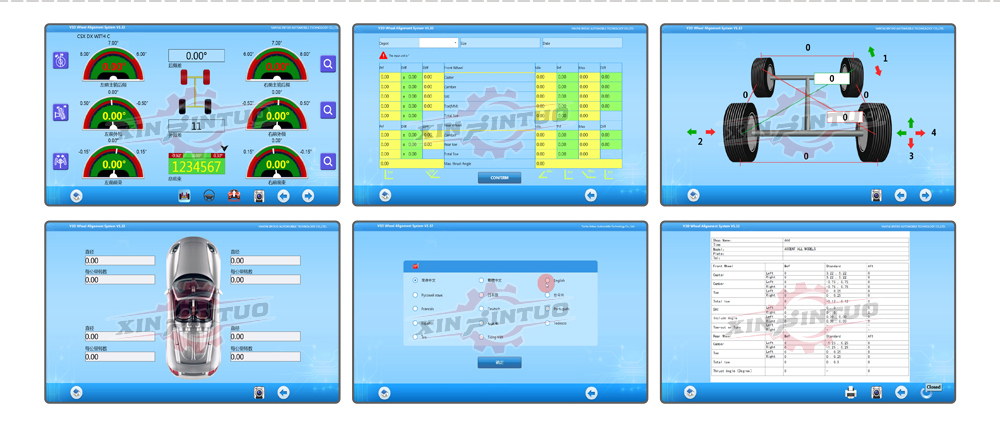

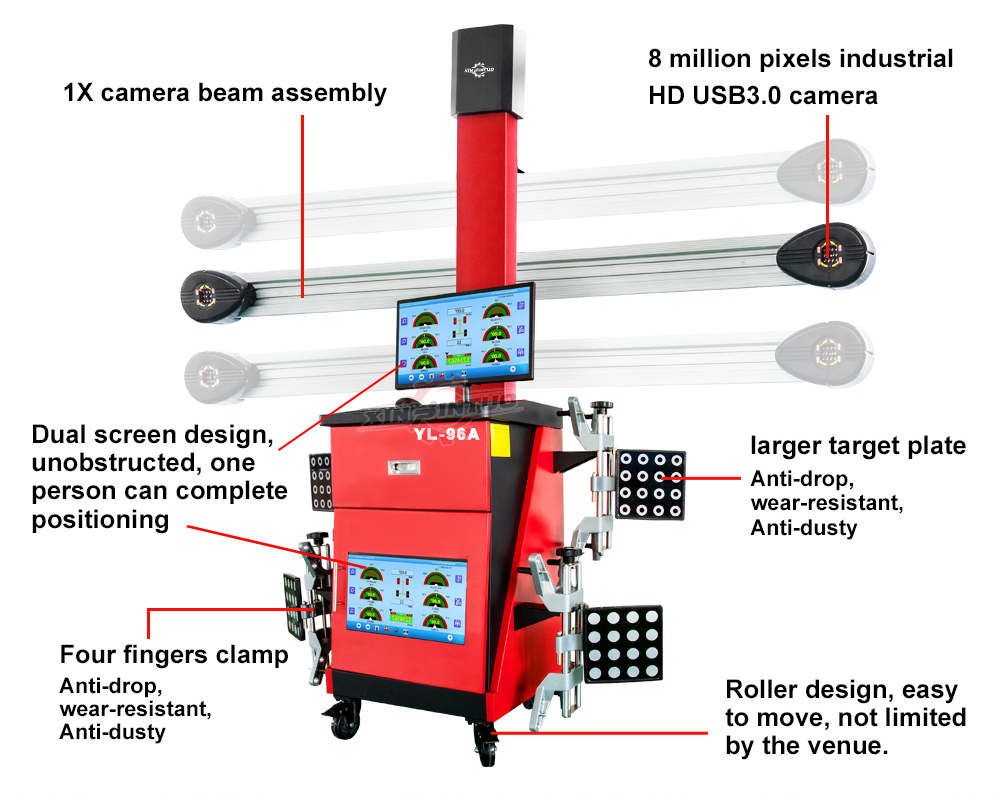

7. Dual display LCD screen, ensure that operators in any Angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.

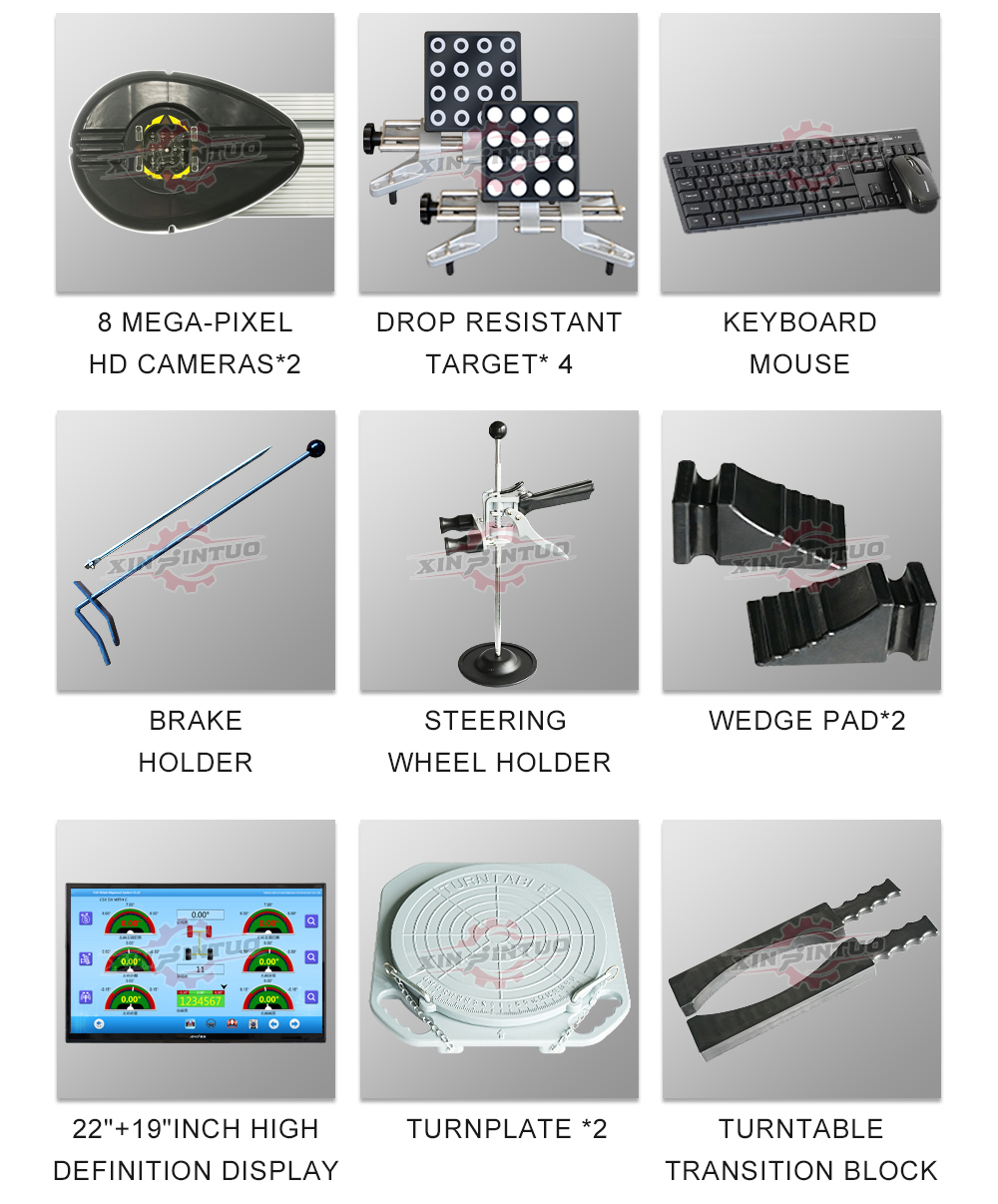

8. Four target plates are made of reinforced plastic shell, aging resistance, long service life;Only detector imaging, no electronic components and connection, strong anti-interference ability.

9. The software is available in multiple languages, including Chinese, English, Spanish, Russian and Portuguese.

Please consult the product manager for more product functions and introductions!

product description详情_04详情_05详情_06详情_07详情_08详情_09详情_10详情_11详情_12详情_13详情_14详情_15详情_16详情_17详情_18详情_19详情_20详情_22详情_23详情_24详情_25详情_26详情_27详情_28详情_29详情_30详情_32详情_31


Previous:
Next:
Message

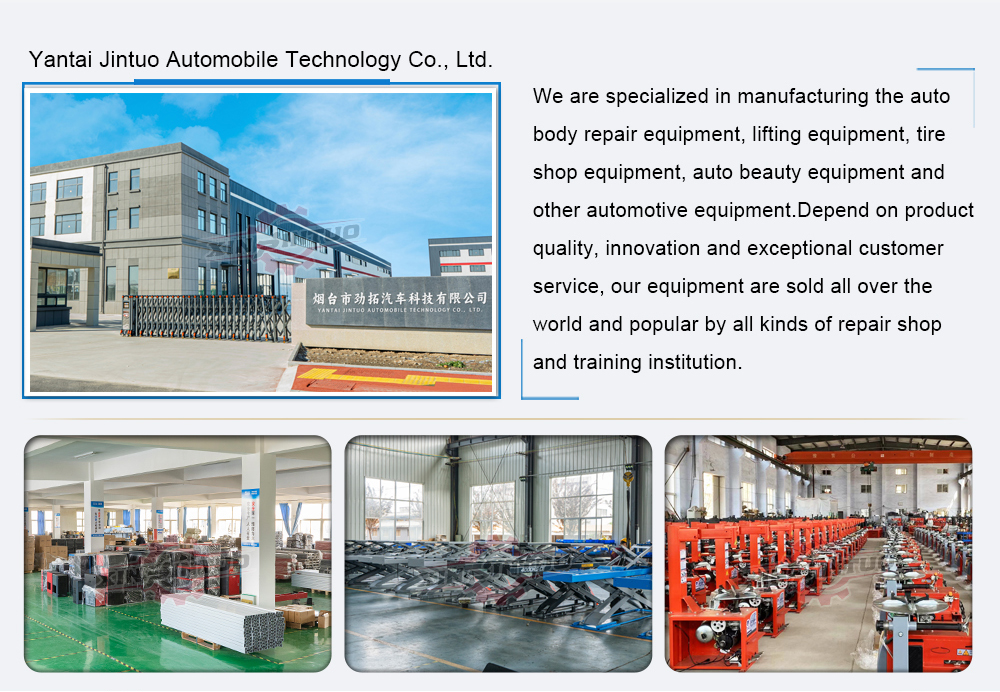

YANTAI JINTUO AUTOMOBILE TECHNOLOGY CO.,LTD. was founded in 1996, which is located in Yantai city. It specializes in auto body repair system, auto lift and tire equipment with technology development, product development, production, sales and service.
