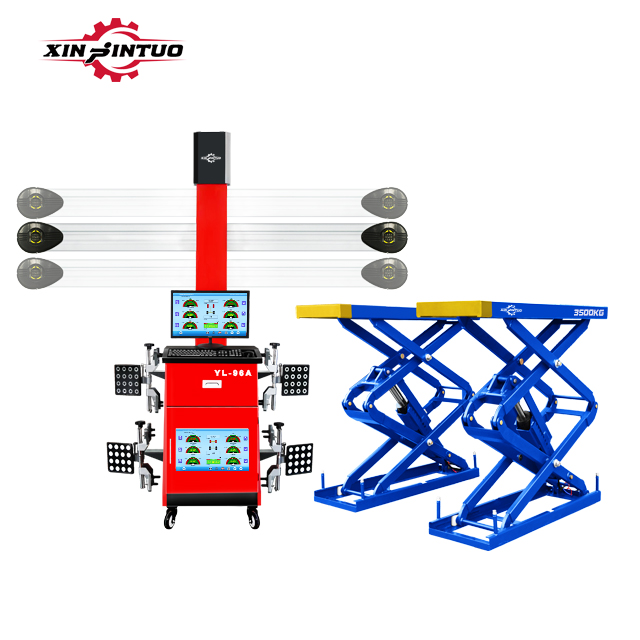

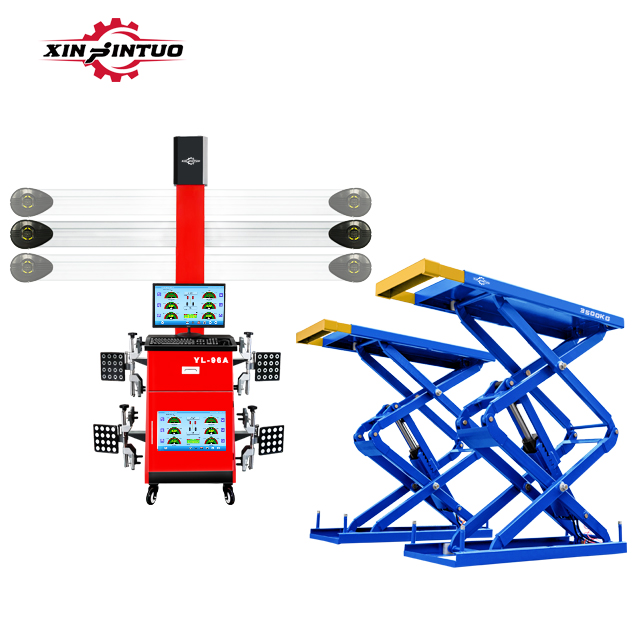

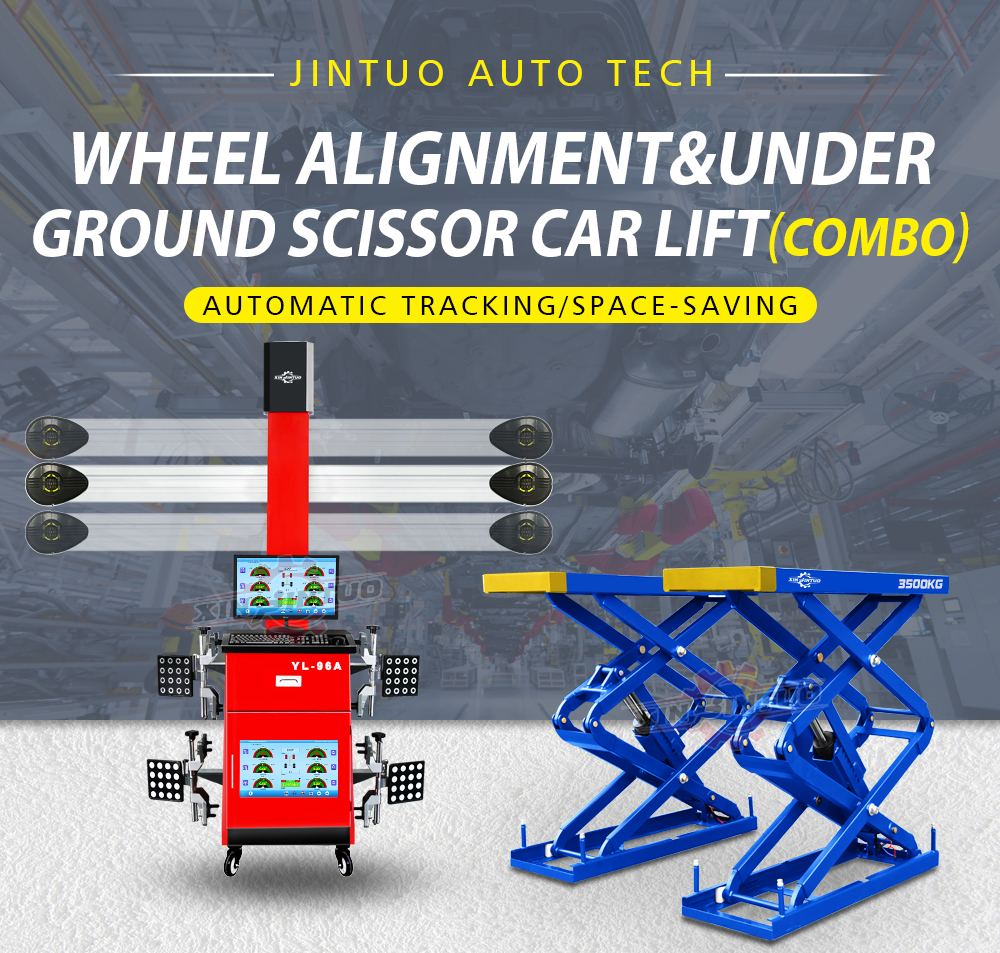

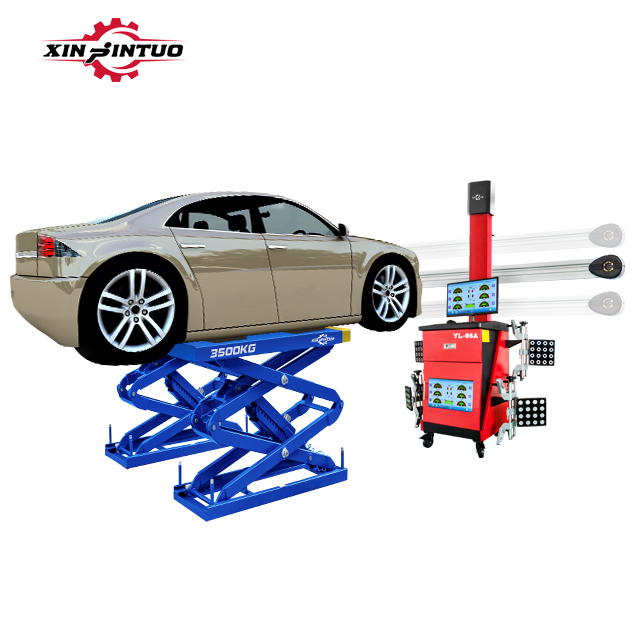

Xinjintuo Hydraulic Inground Scissor Car Lift Vehicle Maintenance Machine 3d Four Wheel Alignment Equipment
-
YL-96A+JSL-3500U
-
XINJINTUO
Product parameters：
| Wheel Alignment | Under Ground Scissor Car Lift | |||
| Measurement Items | Measurement Accuracy | Measurement Range | Measurement Items | Measurement Data |
| Total Toe | ±0.01° | ±40° | Lifting Capacity | 3500Kgs |
| External Bevel | ±0.01° | ±45° | Platform Length | 1560-1760MM |
| Caster | ±0.02° | ±45° | Platform Width | 550MM |
| S.A.I | ±0.02° | ±45° | Lighting Height | 1800MM |
| Thrust Angle | ±0.01° | ±40° | Min. Height | 340MM |
| Set Back | ±0.01° | ±40° | Lighting Time | 50-60S |
| Max.Steering Angle | ±0.02° | ±50° | Motor Power | 2.2KW |
| Wheel Track | ±2° | 1219MM-2438MM | Voltage | 110/220/380V |
| Wheel Base | ±2° | 2006MM-4572MM | Gross Weight | 750Kgs |
Product Description:
1. Suitable for four-wheel positioning. Strong horizontal adjustment ability, can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection.

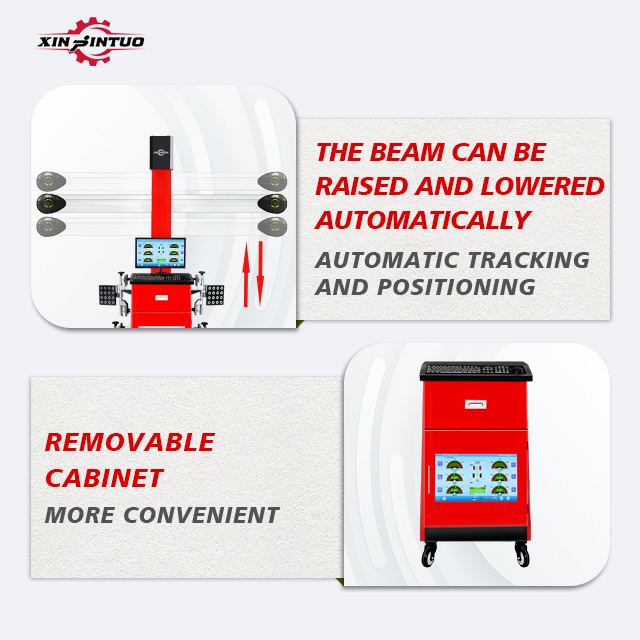

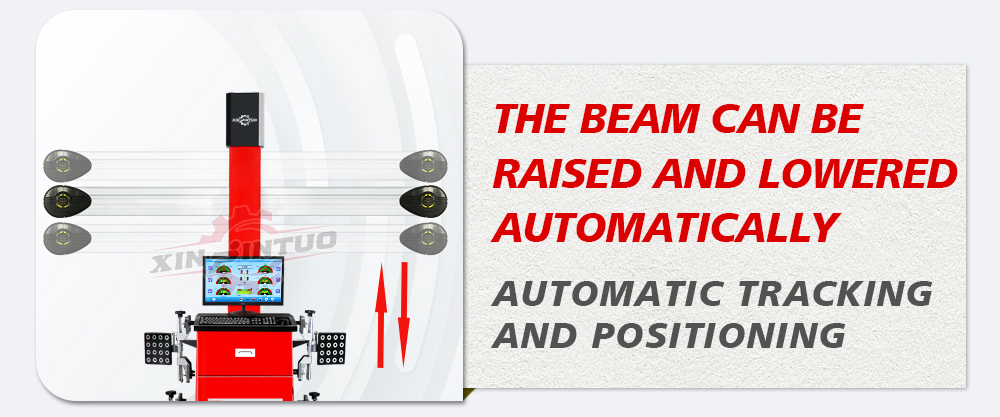

2. The beam has the up and down movement, can be adjusted and controlled by the motor, suitable for different shops' height or vehicle lifting height, make the work more convenient and fast.

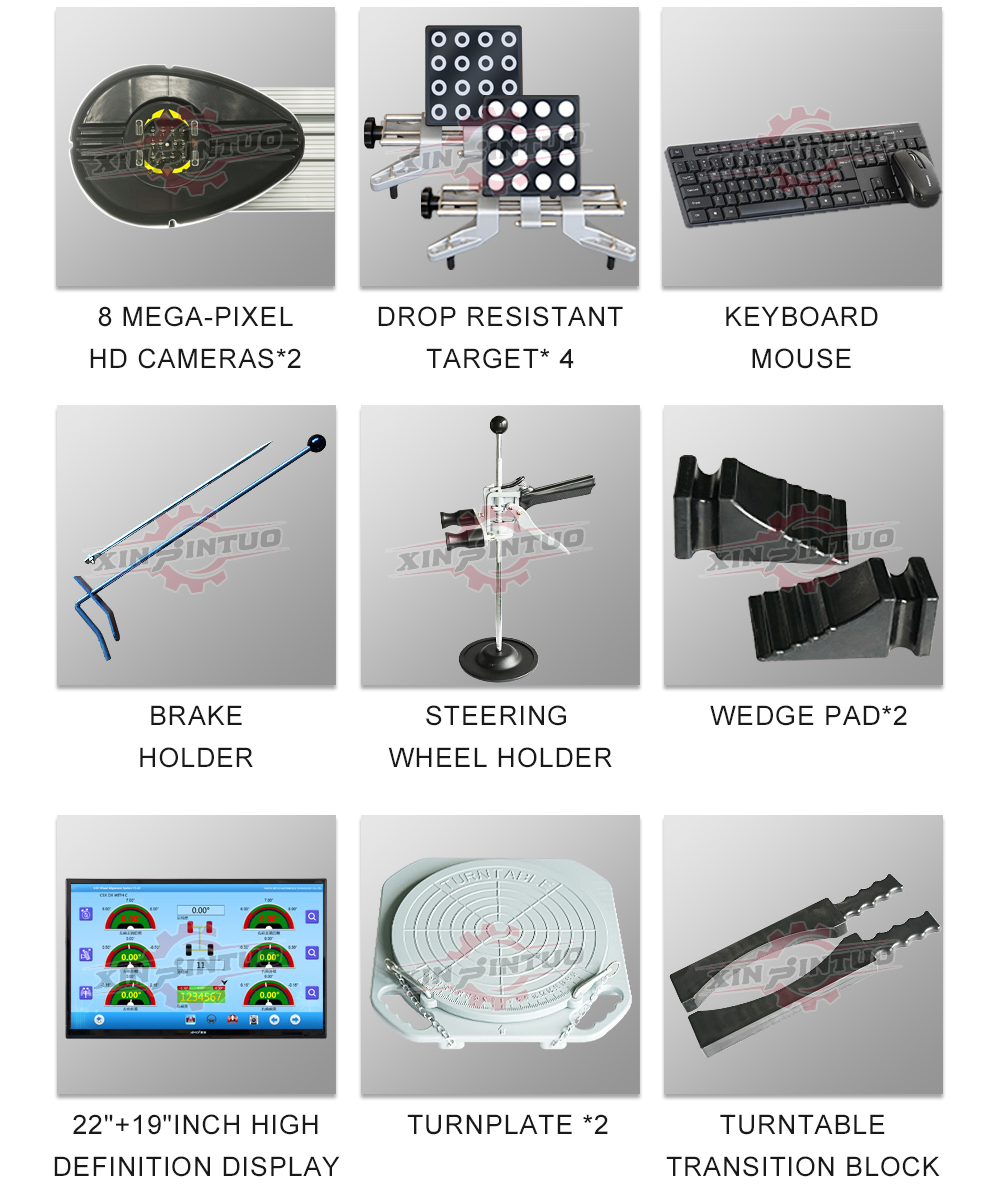

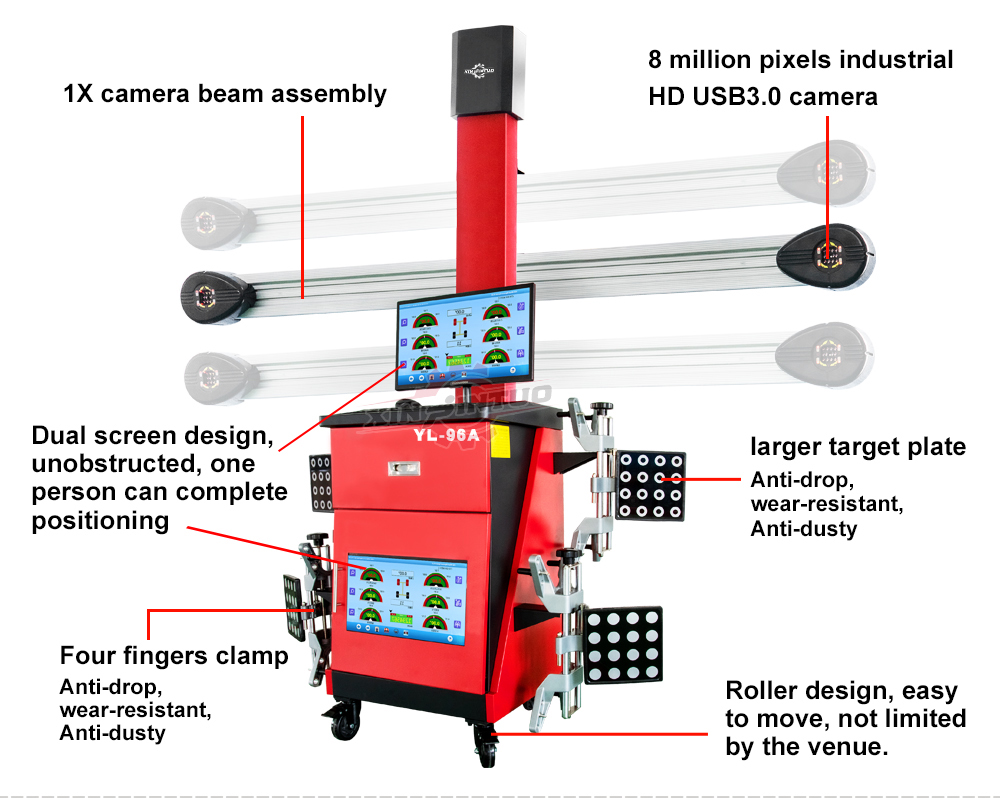

3. Dual display LCD screen, ensure that operators in any Angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.
4. Four target plates are made of reinforced plastic shell, aging resistance, long service life;Only detector imaging, no electronic components and connection, strong anti-interference ability.

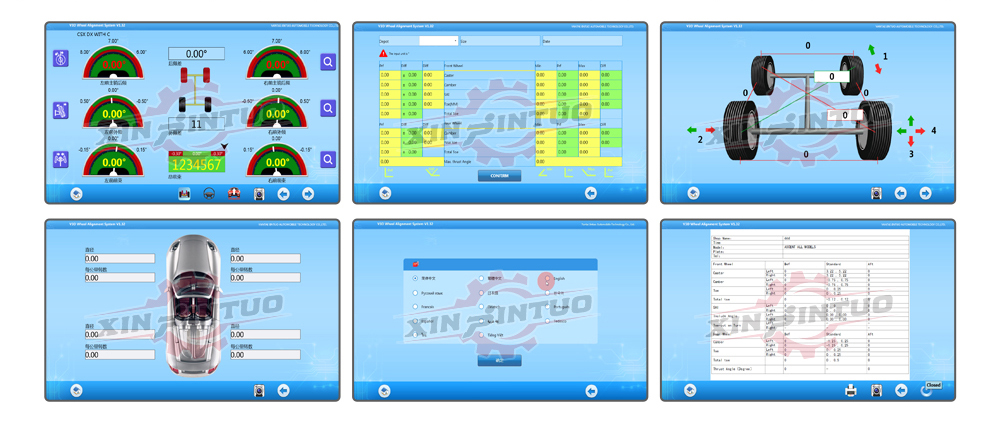

5. The software is available in multiple languages, including Chinese, English, Spanish, Russian and Portuguese.

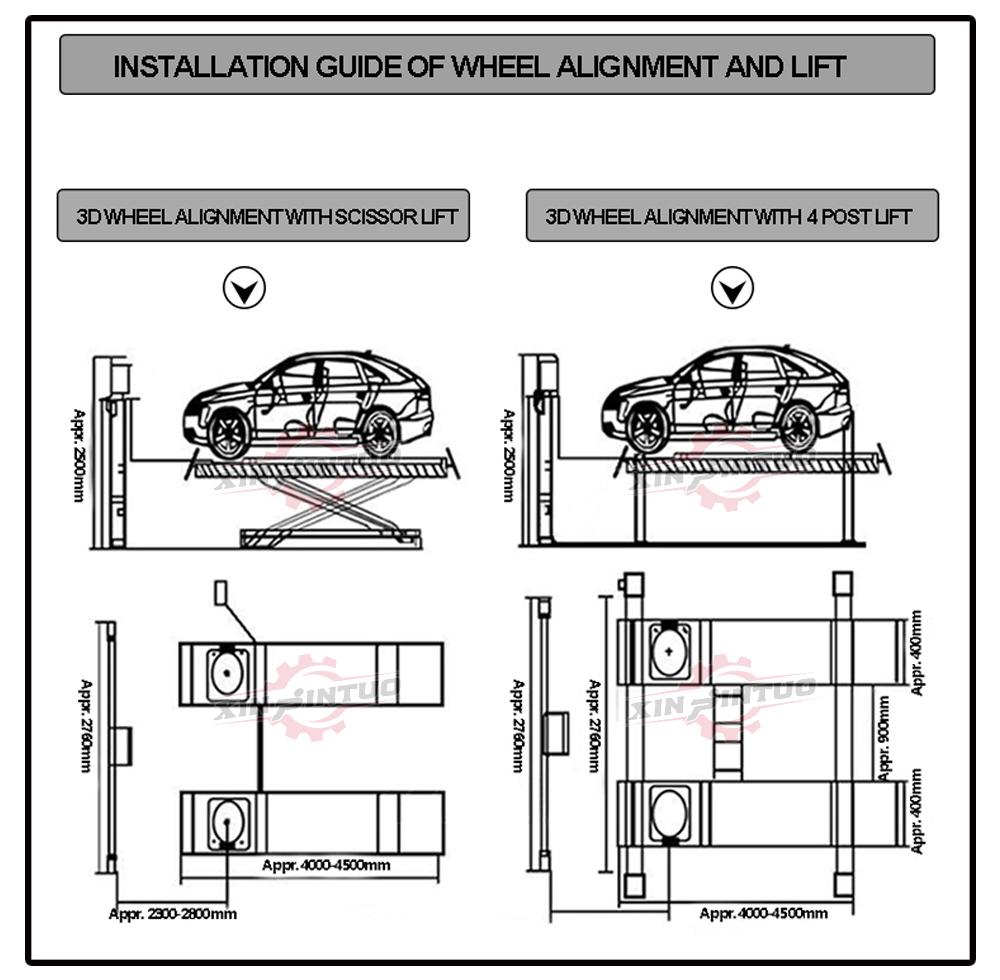

6. In-ground installation,saving the space.Lifting height 1.8m, lifting weight 3.5t.

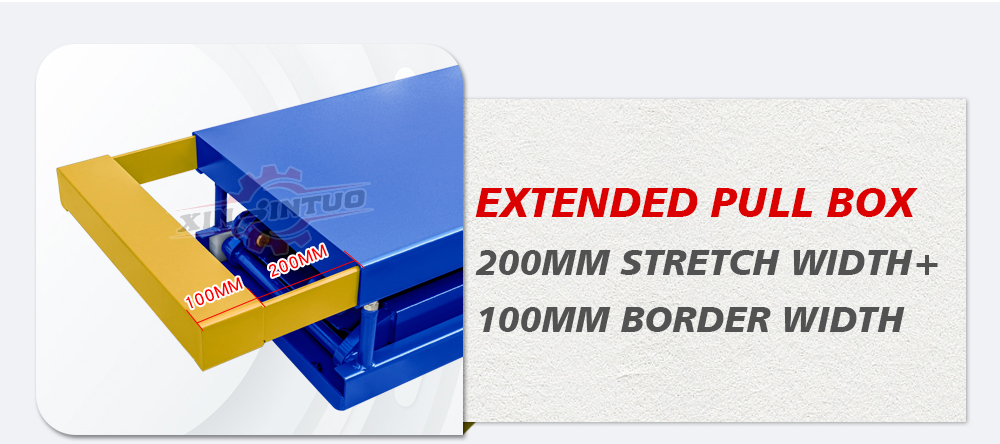

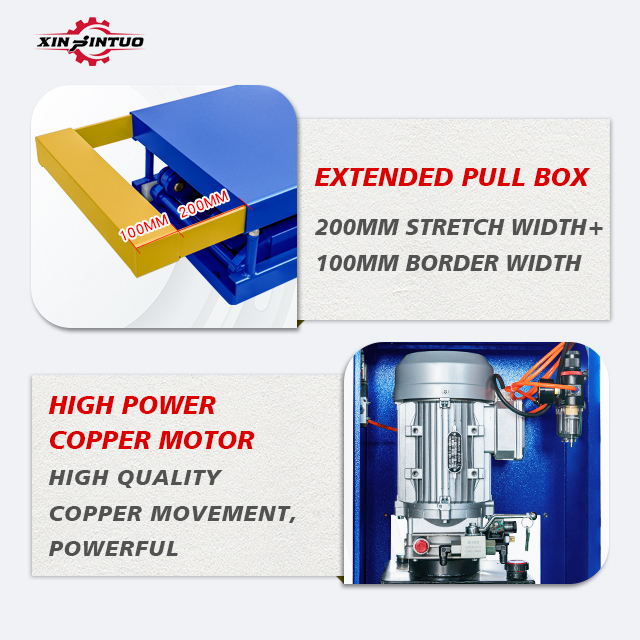

7. Extensible platform design. they are typically extend about 7.87 inch, suitable for the different length of chassis vehicles.

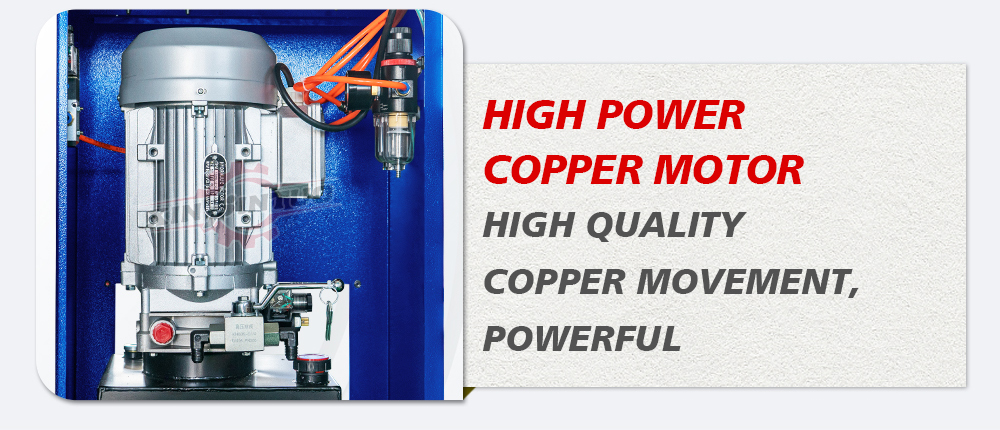

8. Adopt electric hydraulic power system.Easy to remove tires, check and repair chassis, replace engine oil, etc.

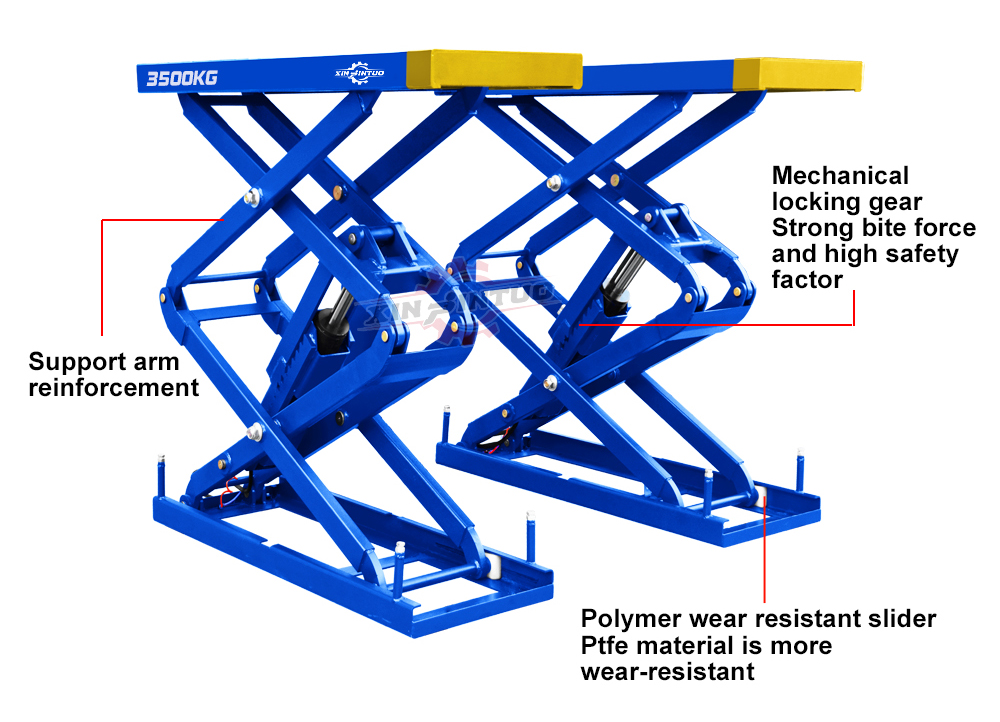

9. With pneumatic self-locking and explosion-proof dual safety device, safe and reliable.
9. Independent control unit adopts 24v low voltage safety control circuit, safer and easier to operate.
Please consult the product manager for more product functions and introductions!
