Detailed explanation of the installation method of the wire rope of the four-post lift

1. Introduction

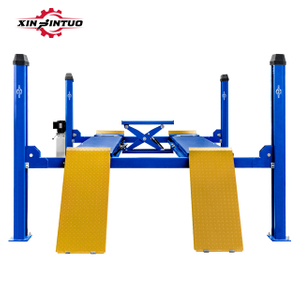

A four-post lift is a commonly used piece of car maintenance equipment that requires a wire rope for lifting. However, the installation of the wire rope is a crucial step, directly related to the safety and life of the machine. This article will introduce the installation method of the wire rope of a four-post lift for your reference.

2. Preparation before installing the wire rope of the four-post car lift

1. Confirm whether the material, specification and quality of the purchased wire rope meet the requirements;

2. Check whether the various components of the four-post lift are damaged, such as the tie rod, hydraulic pipe, four lifting columns, etc.

3. Prepare necessary tools and personnel, such as wire rope clips, nuts, wrenches, pliers, lifting tools, etc.

3. Selection of wire rope for four-post car lift

1. Choose a good quality wire rope. If the diameter meets the requirements, try to choose a thicker wire rope to increase the safety factor.

2. The length of the wire rope should be calculated according to the actual height of the four-post lift. An overlong wire rope will cause inconvenience in use, and an overshort wire rope will reduce the safety factor.

3. The surface of the wire rope should not have obvious scratches, rust or other defects that affect its use.

4. Installation steps of wire rope for four-post car lift

1. First, install the wire rope clamps on the top of the four lifting columns of the four-post lift so that they can be connected to the wire rope when lifting;

2. Pass one end of the wire rope through the slot on the top of the lifting column and tighten it. Fix the wire rope clamp on the rope surface and tighten it around with a wrench or pliers.

3. Install a weight at the end of the wire rope, gradually lift the wire rope until the other end of the wire rope is inserted into the slot at the top of the lifting column, and tighten it;

4. Repeat the above process until all the wire ropes are installed;

5. Finally, use a wrench to check the tightness of each wire rope clip one by one to ensure that it is firmly installed.

5、Summary

Four-post lifts are commonly used in car repairs, but they carry a high safety factor and require strict installation and use. This article details how to install a four-post lift's wire rope for your reference. During installation, be sure to accurately select the wire rope's material and size, and pay attention to the installation steps and safety checks.
