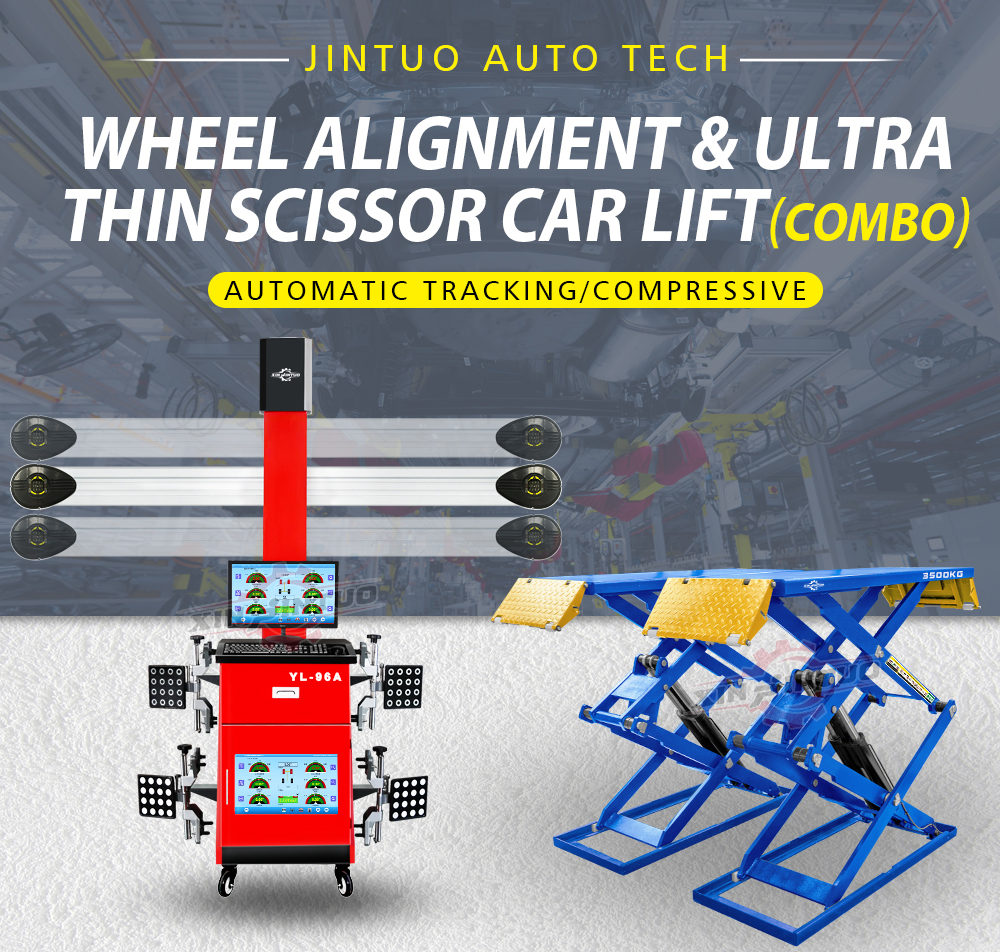

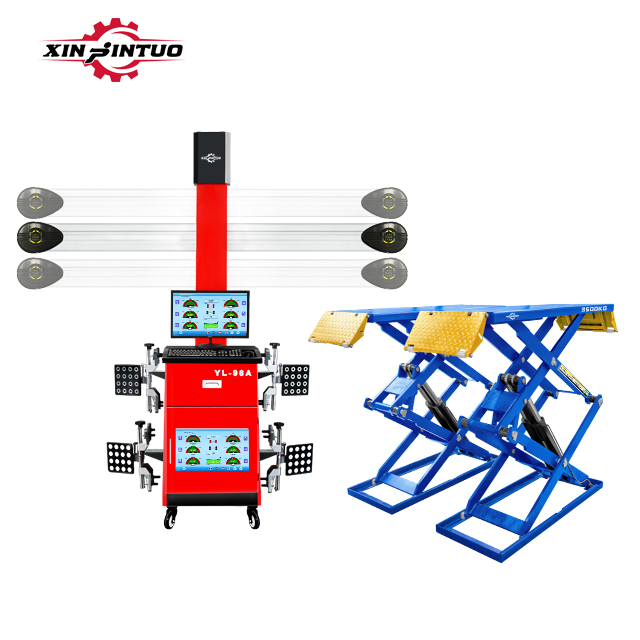

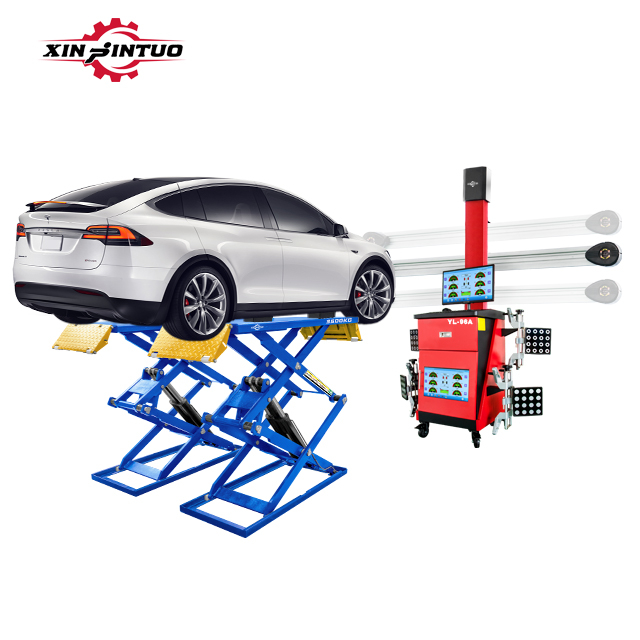

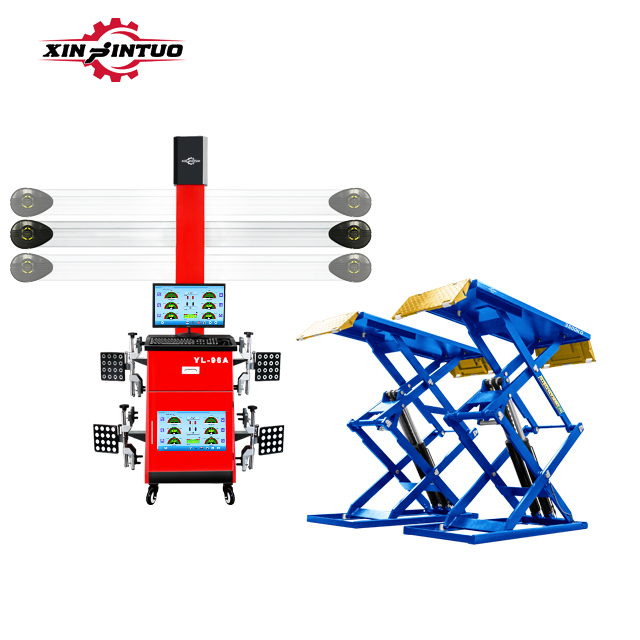

Xinjintuo Four Wheel Alignment Equipment High Quality Cheap Automotive Ultra Thin Scissor Car Lift
-
JSL-3500A+YL-96A
-
XINJINTUO
Product parameters：
| Wheel Alignment | Ultra Thin Scissor Car Lift | |||
| Measurement Items | Measurement Accuracy | Measurement Range | Measurement Items | Measurement Data |
| Total Toe | ±0.01° | ±40° | Lifting Capacity | 3500KGS |
| External Bevel | ±0.01° | ±45° | Platform Length | 1550MM |
| Caster | ±0.02° | ±45° | Platform Width | 645MM |
| S.A.I | ±0.02° | ±45° | Lighting Height | 1800MM |
| Thrust Angle | ±0.01° | ±40° | Floor Height | 110MM |
| Set Back | ±0.01° | ±40° | Lighting Time | 50-60S |
| Max.Steering Angle | ±0.02° | ±50° | Motor Power | 2.2KW |
| Wheel Track | ±2° | 1219MM-2438MM | Voltage | 220/380V |
| Wheel Base | ±2° | 2006MM-4572MM | Gross Weight | 880KGS |
Product Description:
1. Suitable for four-wheel positioning. Strong horizontal adjustment ability, can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection.
2. Extendable platform suitable for more long chassis vehicles.

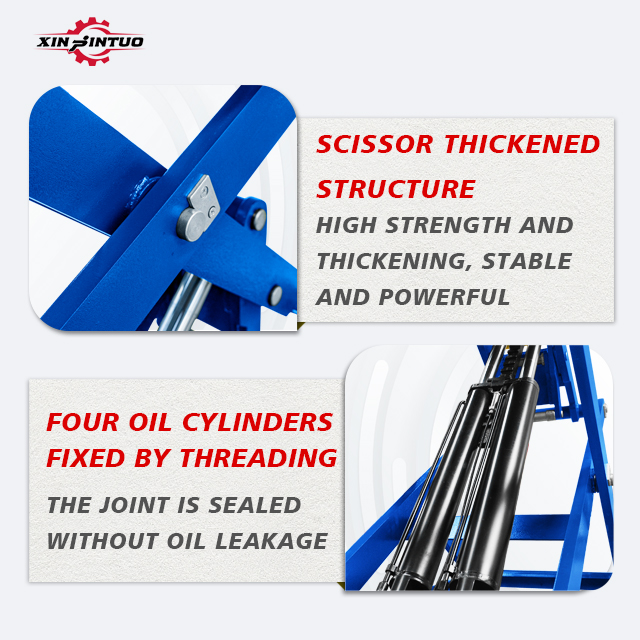

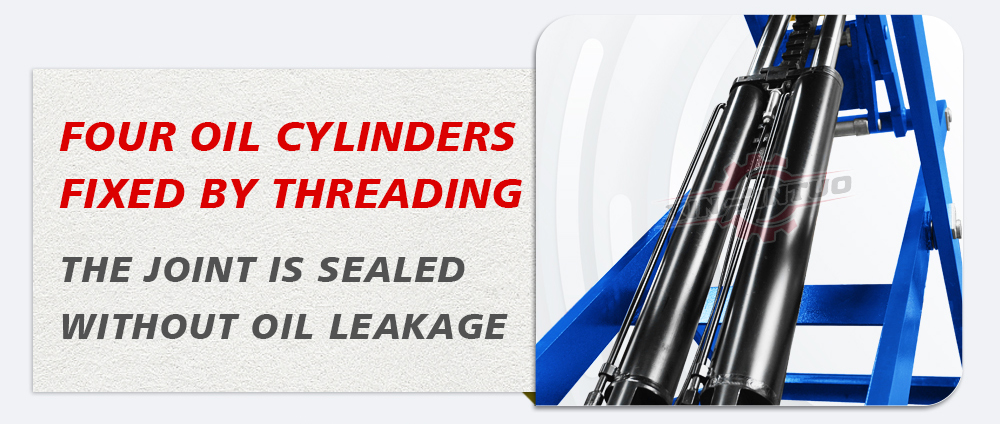

3. Four-cylinder drive, strong power, can lift 3000kg, lift 1850mm.
4. Independent control unit adopts 24v low voltage safety control circuit, safer and easier to operate.
5. 120% dynamic loading test and 150% static loading test comply with the CE standard.

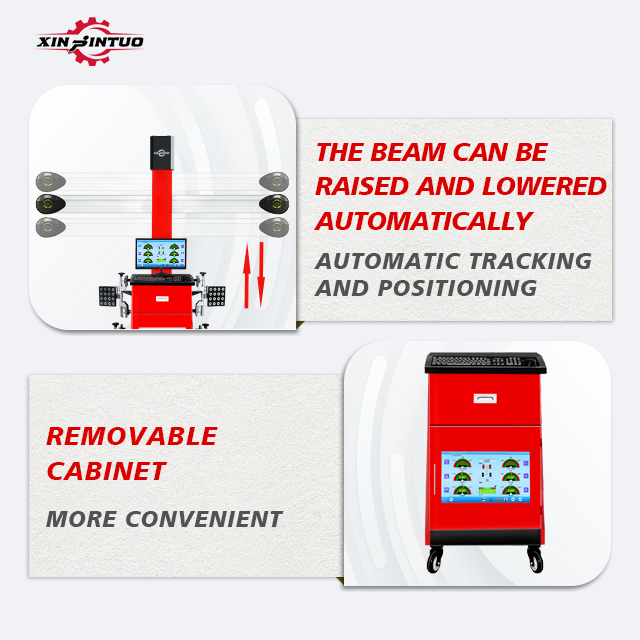

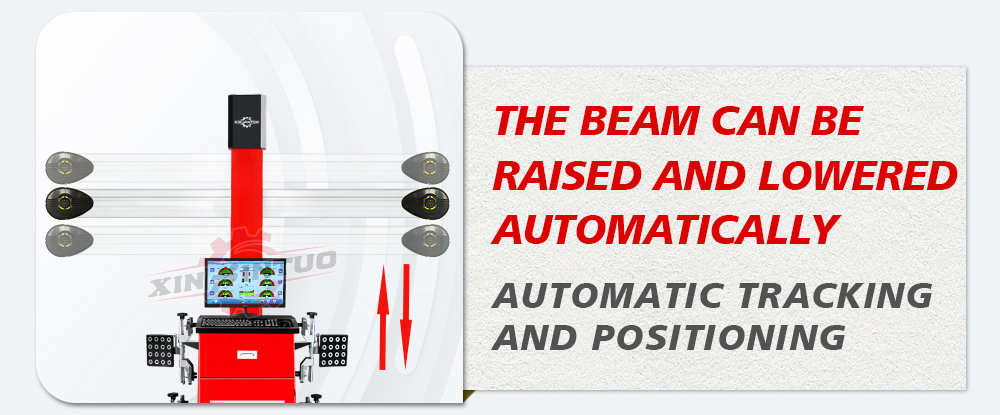

6. The beam has the up and down movement, can be adjusted and controlled by the motor, suitable for different shops' height or vehicle lifting height, make the work more convenient and fast.

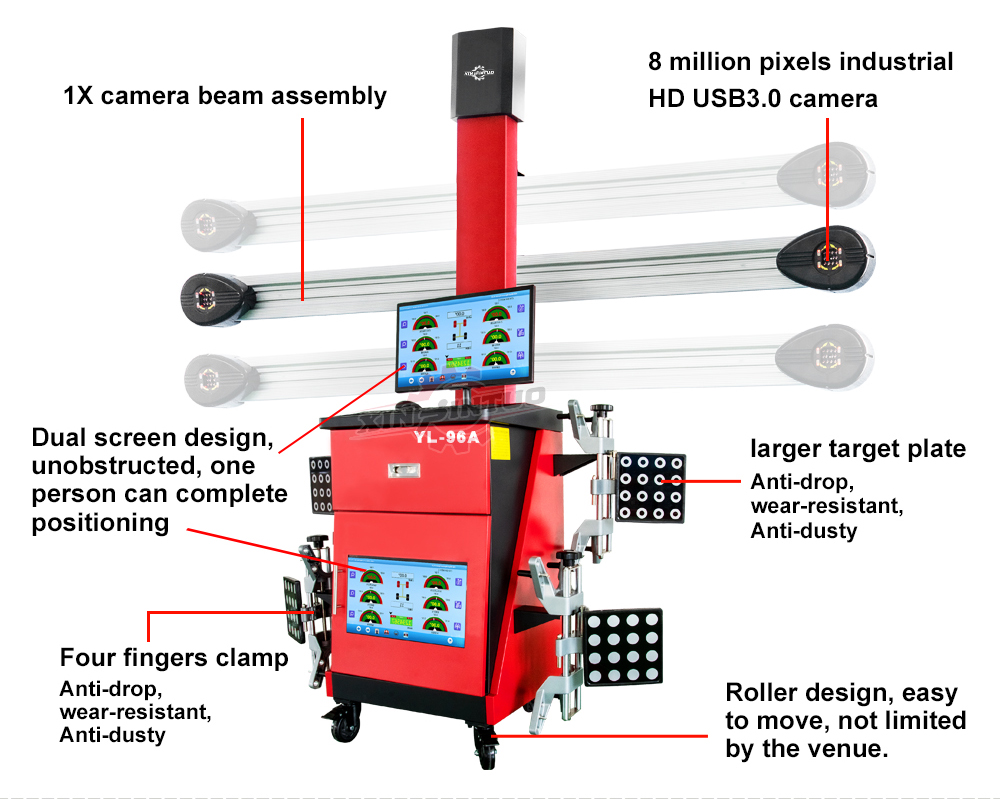

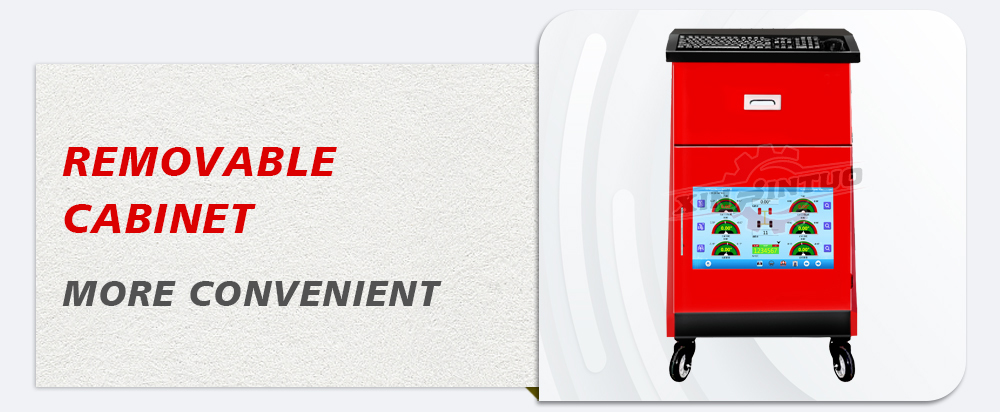

7. Dual display LCD screen, ensure that operators in any Angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.

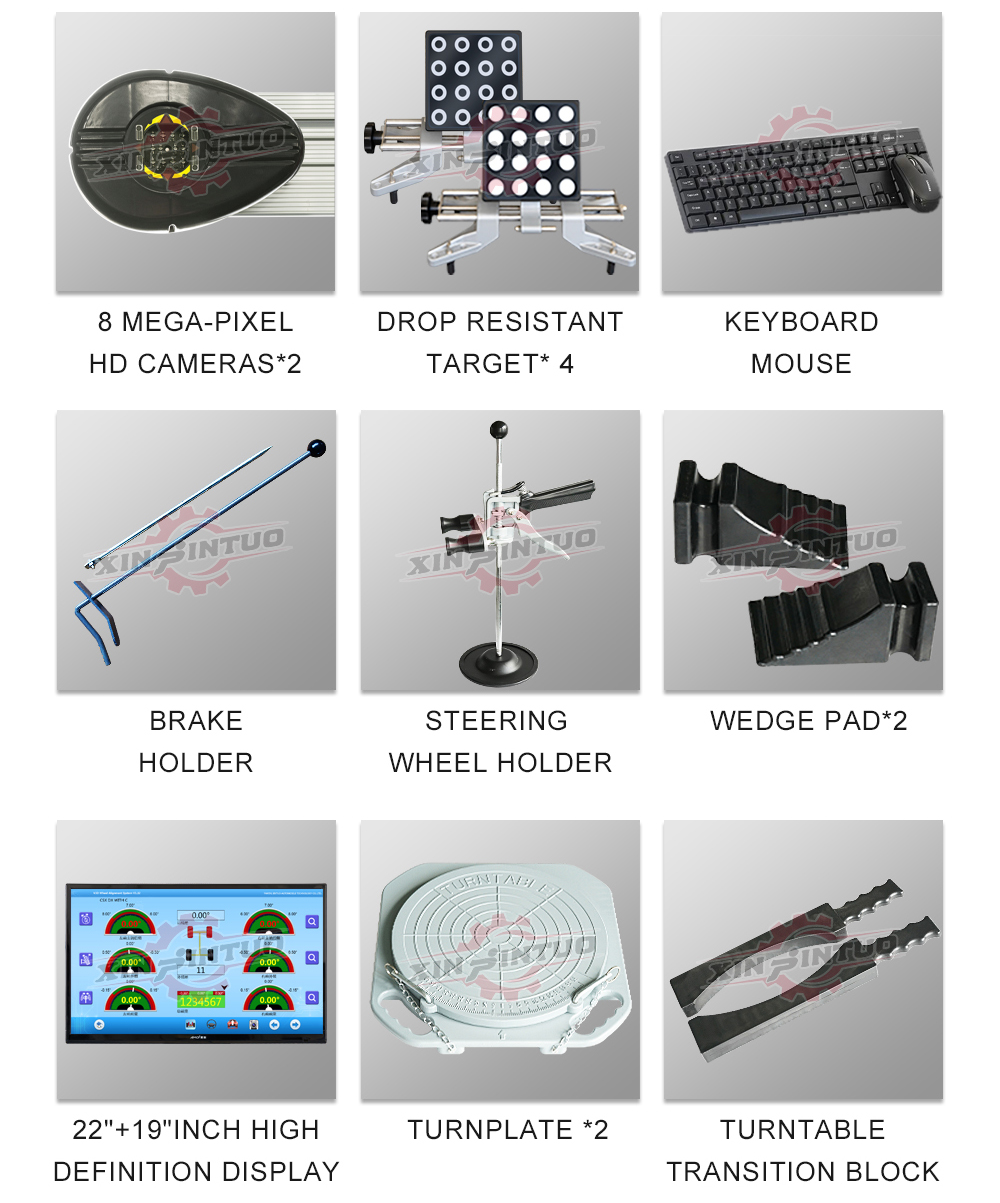

8. Four target plates are made of reinforced plastic shell, aging resistance, long service life;Only detector imaging, no electronic components and connection, strong anti-interference ability.

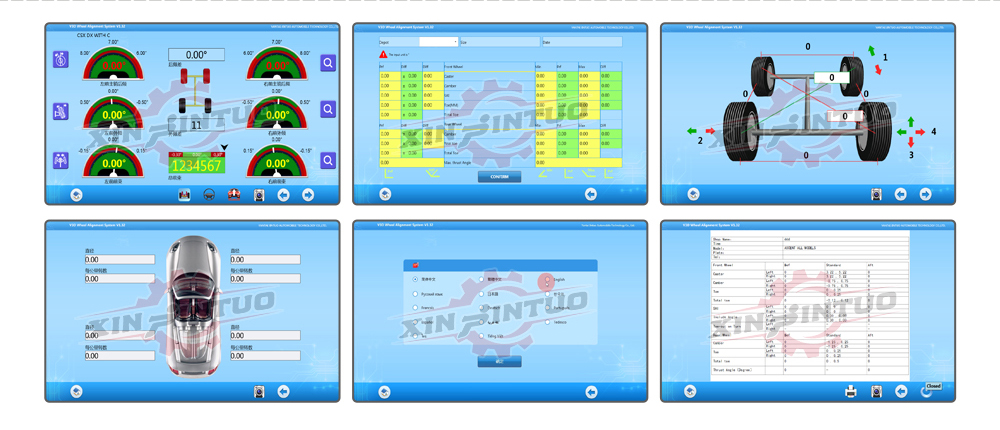

9. The software is available in multiple languages, including Chinese, English, Spanish, Russian and Portuguese.
Please consult the product manager for more product functions and introductions!
