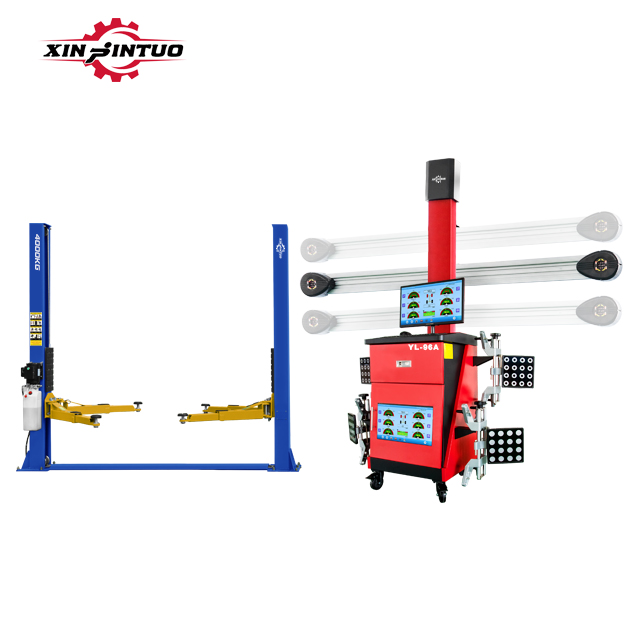

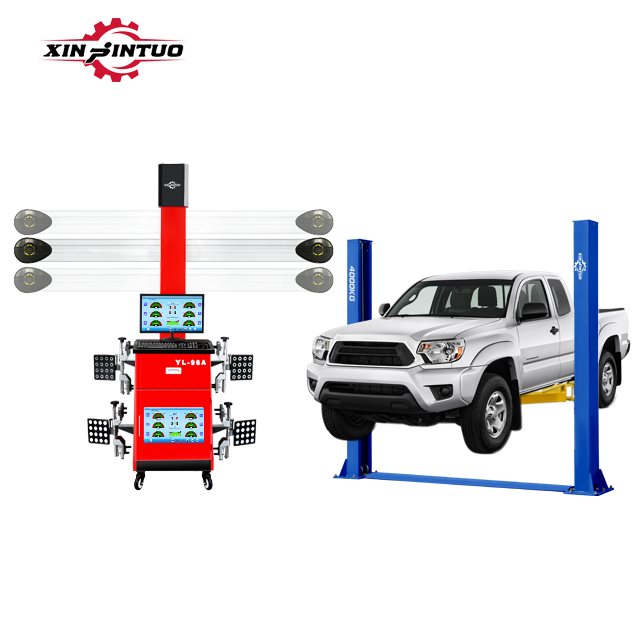

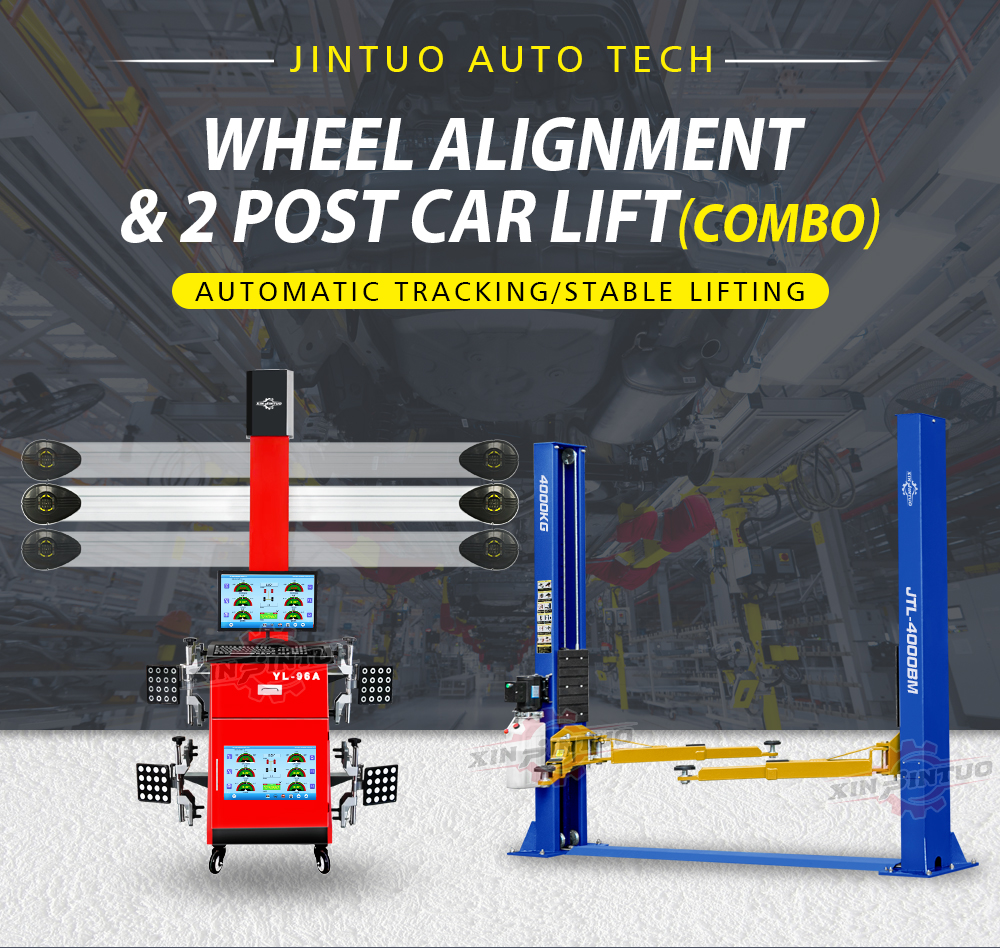

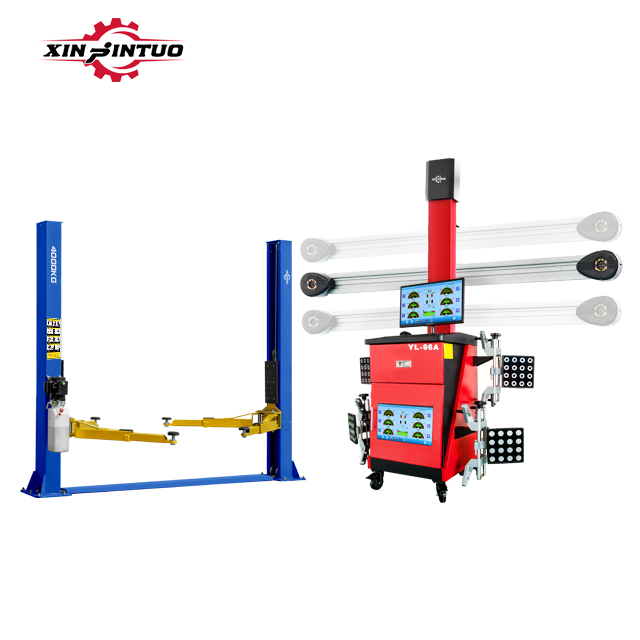

Xinjintuo Hot Sale Car Lift Vehicle Maintenance Equipment 3d Four Wheel Alignment

  • YL-96A+JTL-4000BM

  • XinJintuo

Availability:

详情_01_01product main advantages

Product parameters:

Wheel Alignment Machine
2 Post Car Lift
Measurement Items Measurement Accuracy Measurement Range Measurement Items Measurement Data
Total Toe  ±0.01° ±40° Lifting Capacity 4000Kgs
External Bevel ±0.01° ±45° Overall Width 3540MM
Caster ±0.02° ±45° Overall Height 2824MM
S.A.I ±0.02° ±45° Lighting Height 1850MM
Thrust Angle ±0.01° ±40° Drive Thru Width 2719MM
Set Back ±0.01° ±40° Motor Power
2.2KW
Max.Steering Angle ±0.02° ±50° Voltage 220/380V
Wheel Track ±2° 1219MM-2438MM Gross Weight
570Kgs

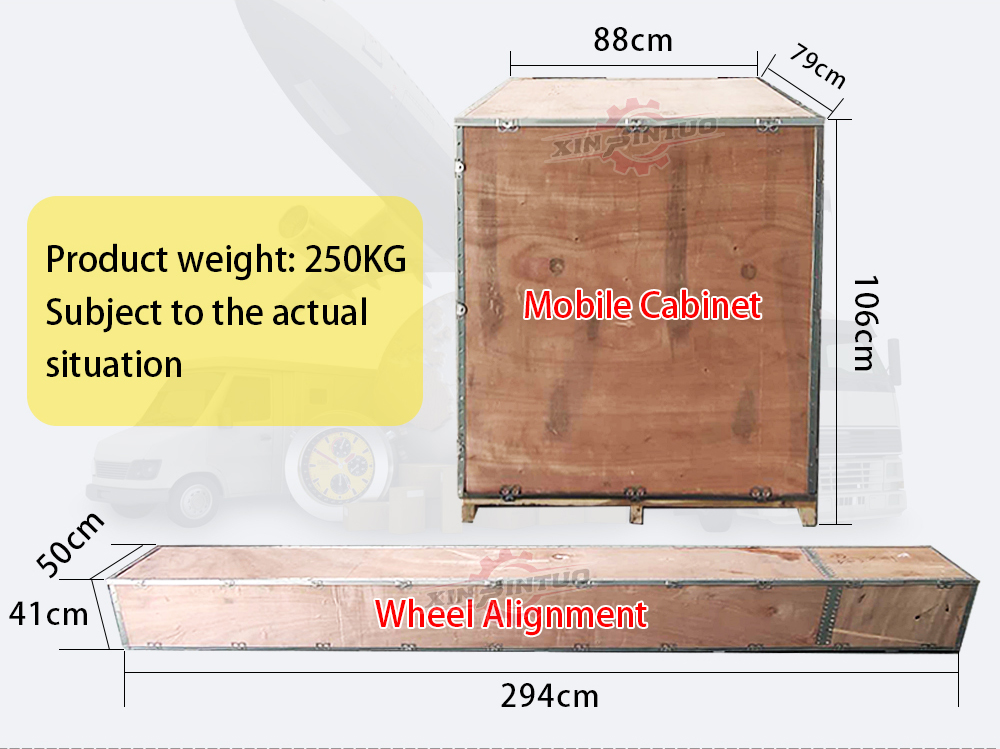

Wheel Base ±2° 2006MM-4572MM Packing Size 2800*530*720MM(1pc)

Product Description:

1. Suitable for four-wheel positioning. Strong horizontal adjustment ability, can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection.

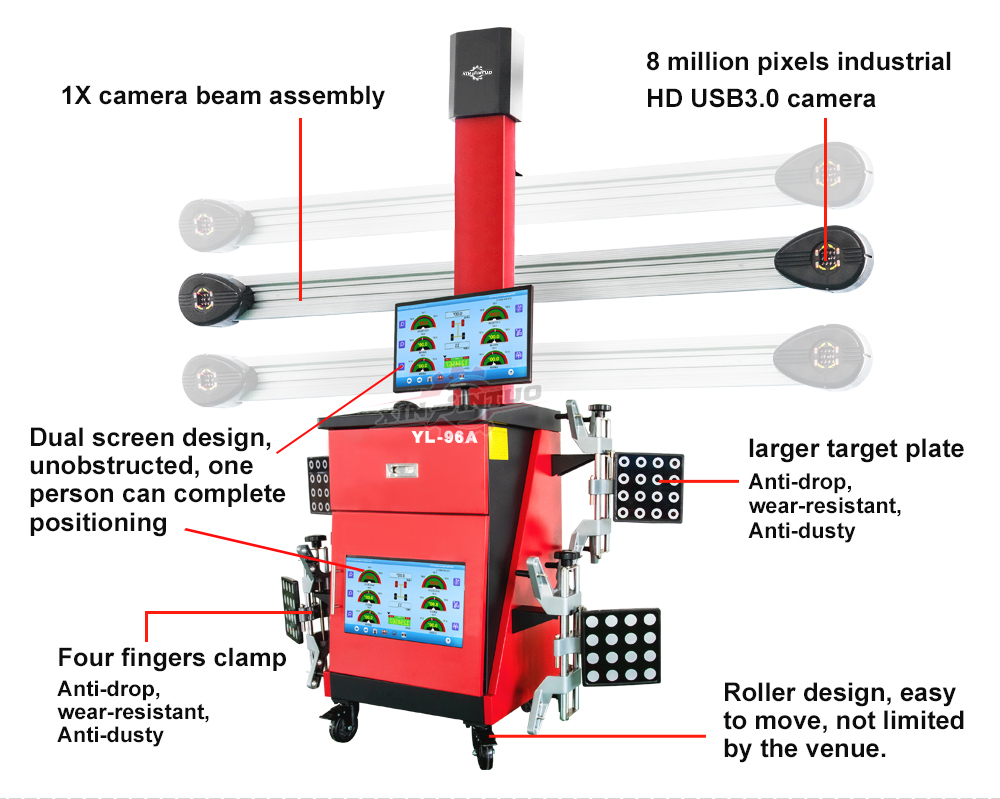

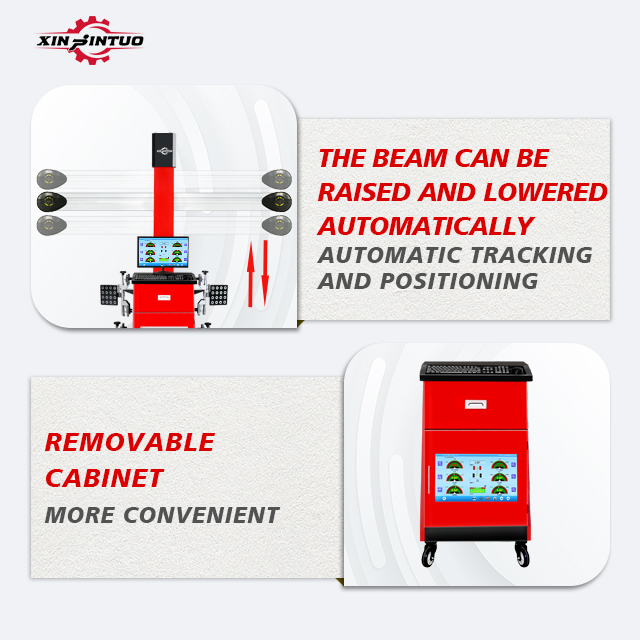

2. Dual display LCD screen, ensure that operators in any Angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.

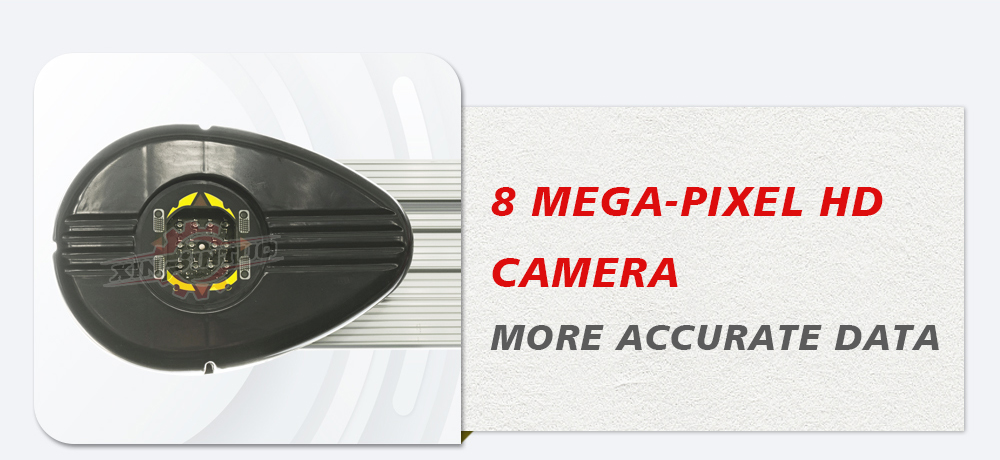

3. Four target plates are made of reinforced plastic shell, aging resistance, long service life;Only detector imaging, no electronic components and connection, strong anti-interference ability.

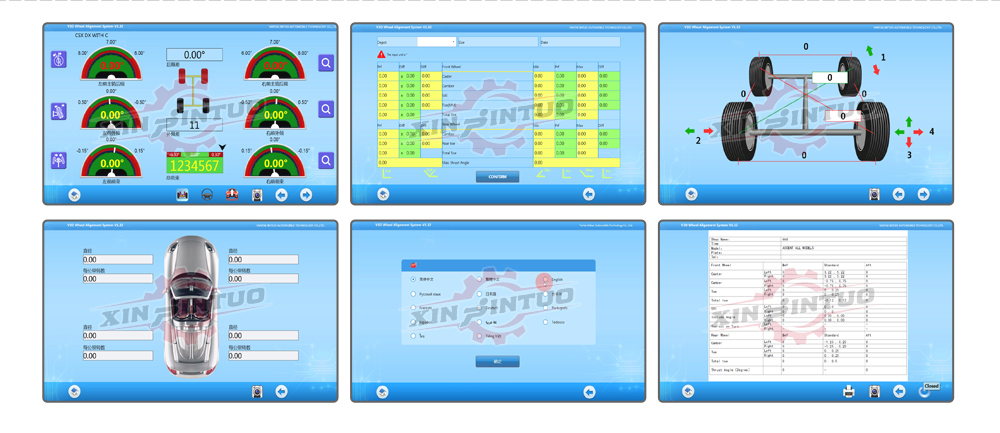

4. The software is available in multiple languages, including Chinese, English, Spanish, Russian and Portuguese.

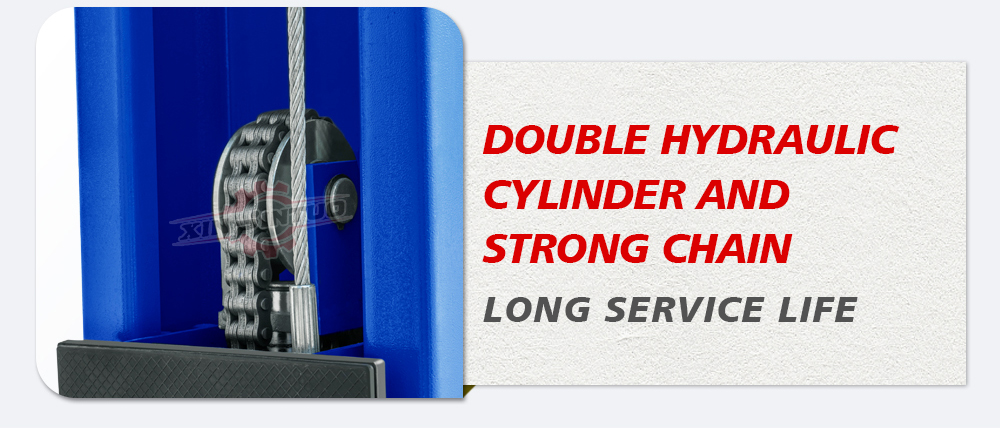

5. Double hydraulic cylinder chain drive. Double chain lift, greatly increase the service life of equipment.

6. The steel wire rope balance system forces the car to move synchronously, lifting smoothly, and effectively prevents the vehicle from tilting.

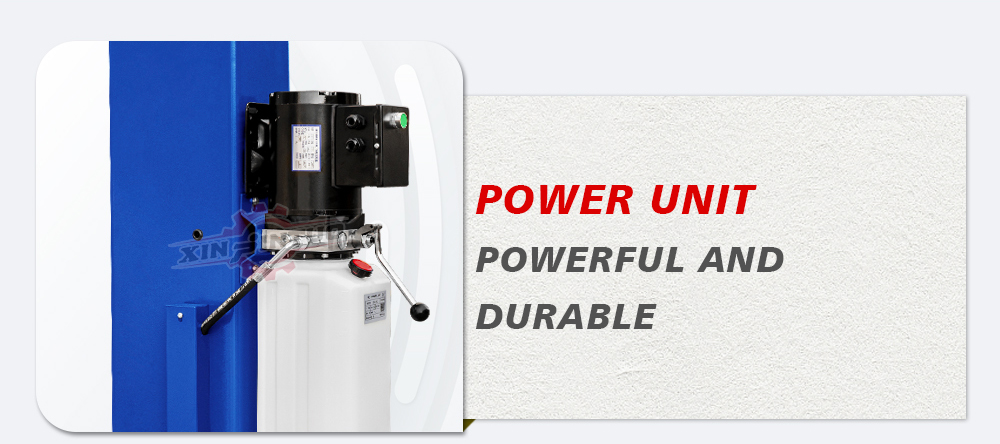

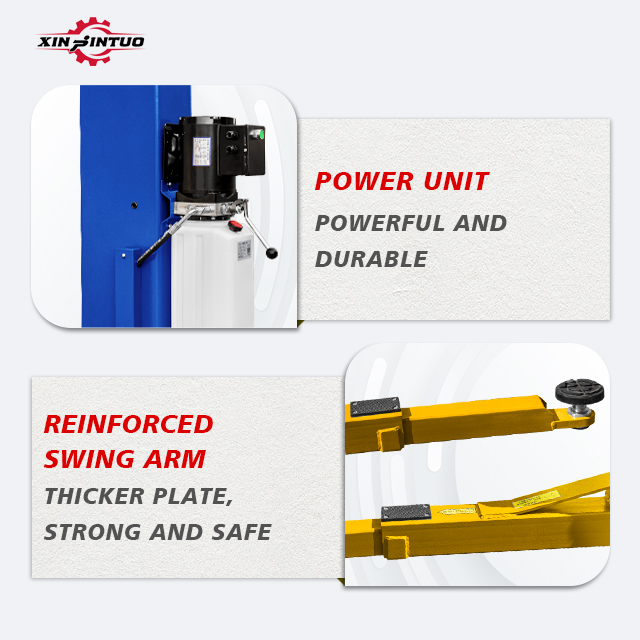

7. Pure copper motor, strong power. Electric hydraulic system, power is strong, durable, heat dissipation is more quickly to increase work efficiency.

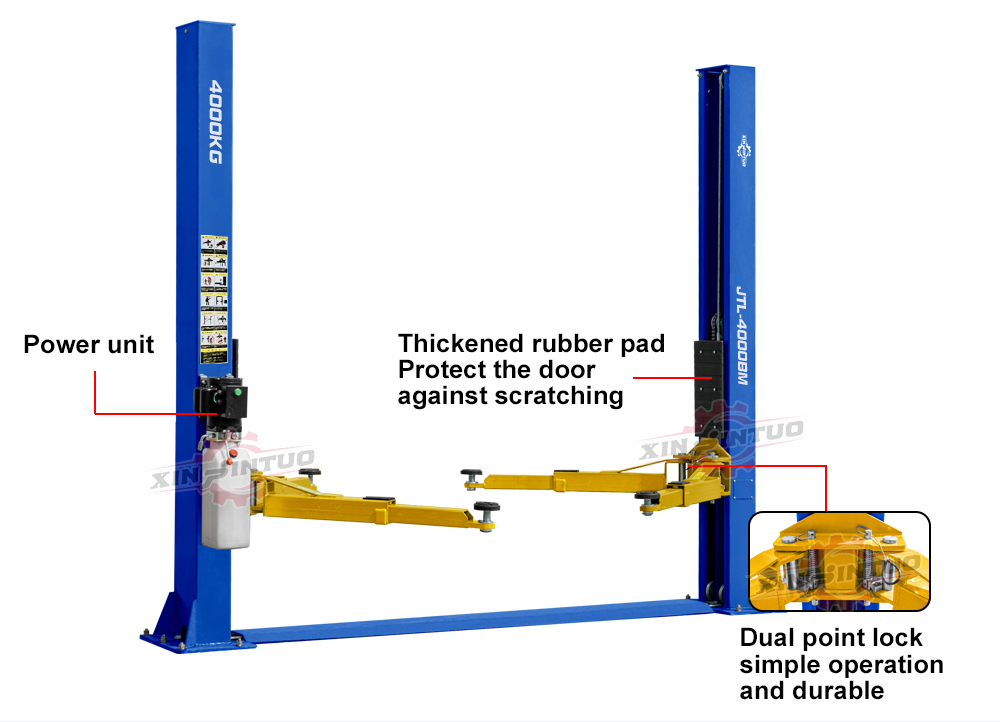

8. Thickened rubber pad to protect door. Thick rubber pads are installed on both sides to protect the door from rubbing.

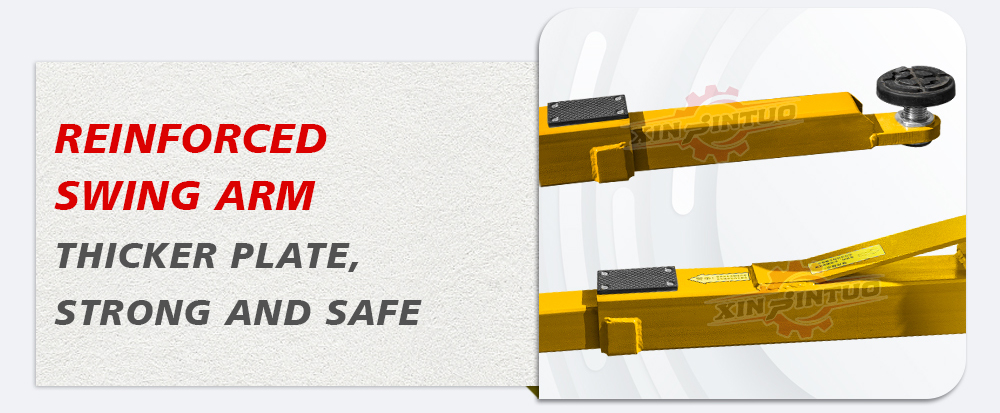

9. Reinforced arm for safer lifting. The stress point is reinforced with multiple reinforcement plates, which is safe and reliable.

Please consult the product manager for more product functions and introductions!
