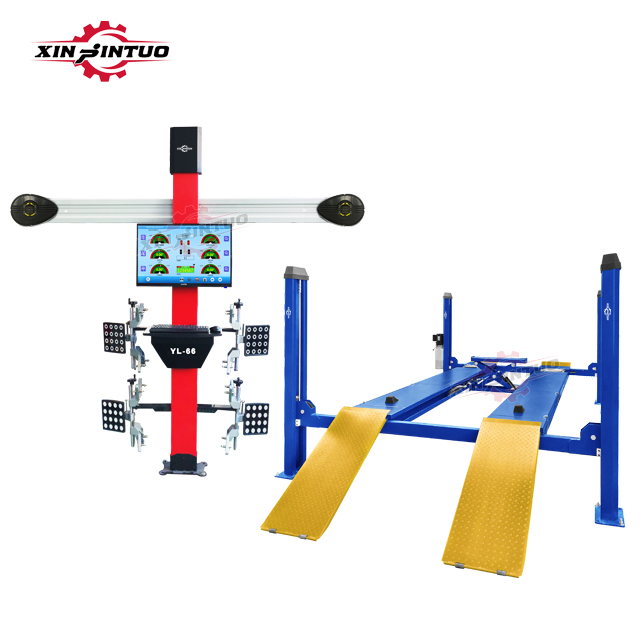

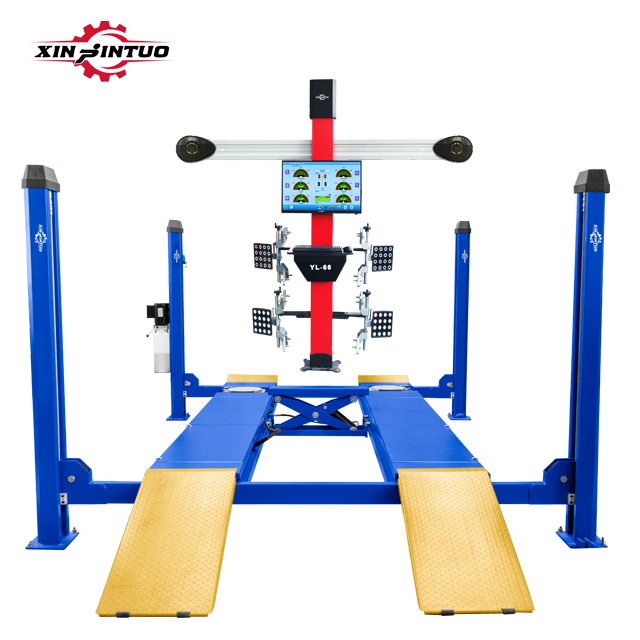

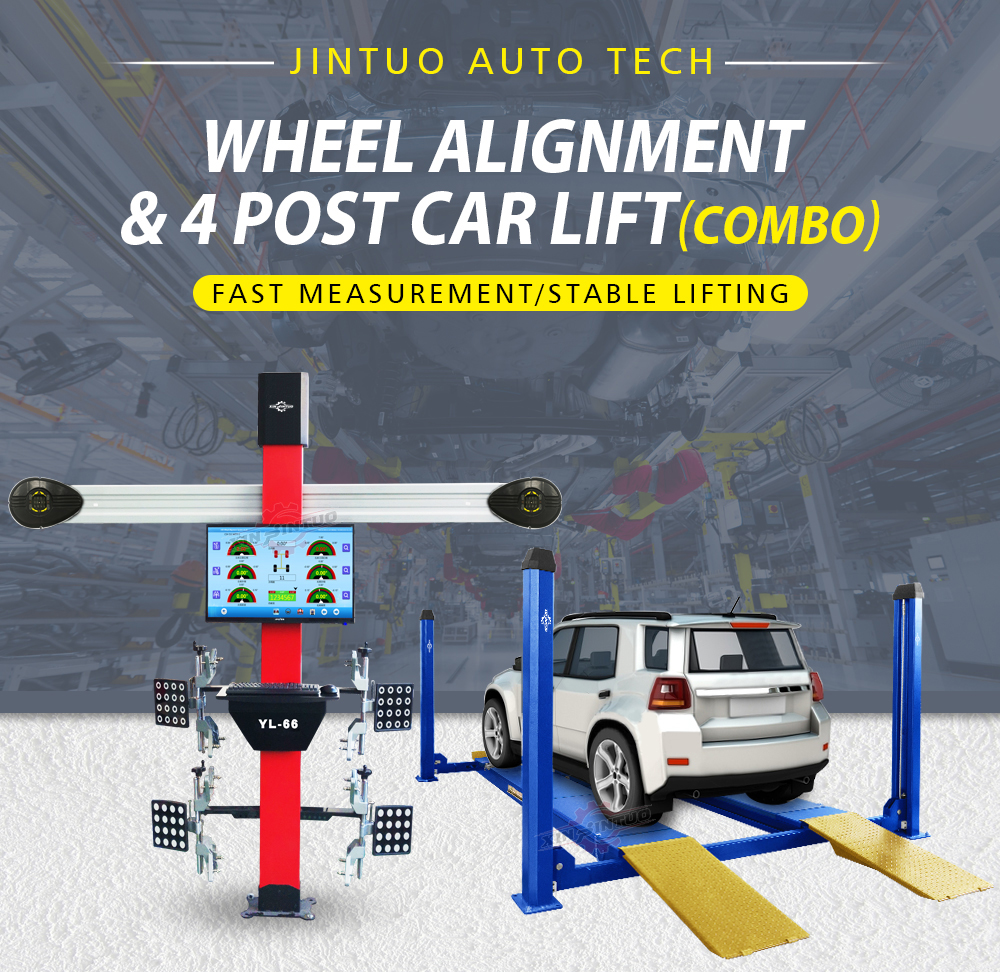

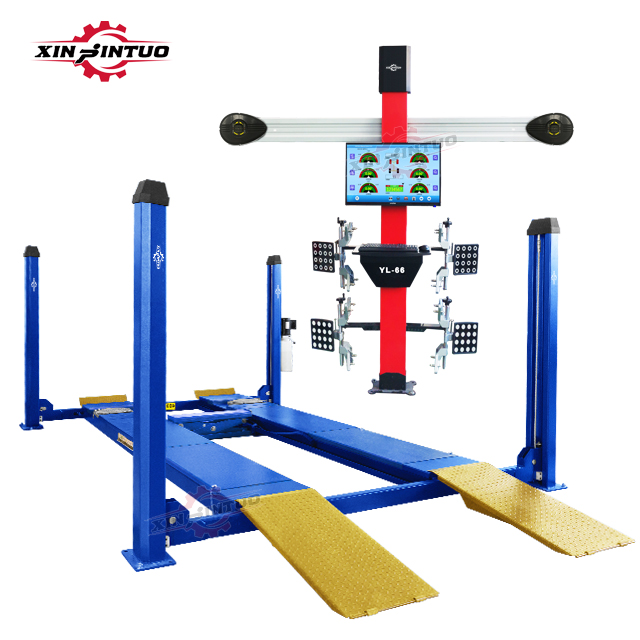

Xinjintuo Hydraulic 4 Post Car Lifts Vehicle Repair Tool 3d Four Wheel Alignment Equipment
-
YL-66+JFL-4000A
-
XINJINTUO
Product parameters：
| Wheel Alignment Machine | 4 Post Car Lift | |||
| Measurement Items | Measurement Accuracy | Measurement Range | Measurement Items | Measurement Data |
| Total Toe | ±0.01° | ±40° | Lifting Capacity | 4000KGS |
| External Bevel | ±0.01° | ±45° | Platform Length | 4200/4500MM |
| Caster | ±0.02° | ±45° | Platform Width | 550MM |
| S.A.I | ±0.02° | ±45° | Lighting Height | 1600MM |
| Thrust Angle | ±0.01° | ±40° | Secondary Jack | 470MM |
| Set Back | ±0.01° | ±40° | Motor Power | 2.2KW |
| Max.Steering Angle | ±0.02° | ±50° | Voltage | 110/220/380/415V |
| Wheel Track | ±2° | 1219MM-2438MM | Gross Weight | 12350KGS |
| Wheel Base | ±2° | 2006MM-4572MM | Packing Size | 4700*650*900MM(1pc) |
Product Description:
1. Suitable for four-wheel positioning. Strong horizontal adjustment ability, can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection.

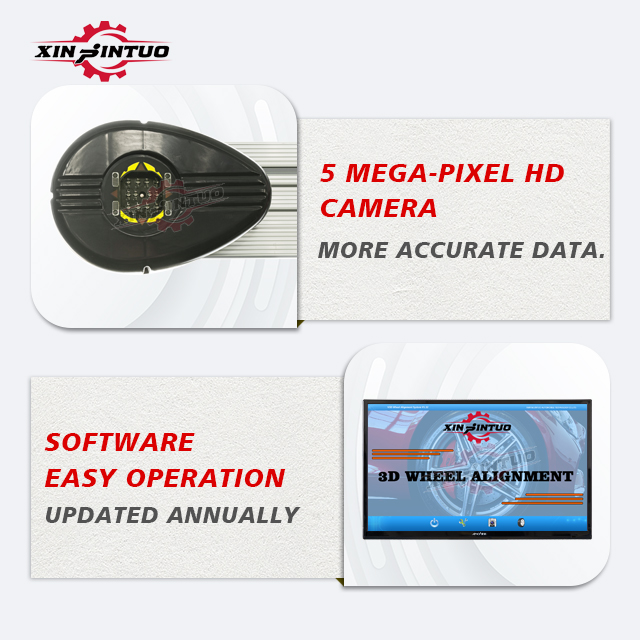

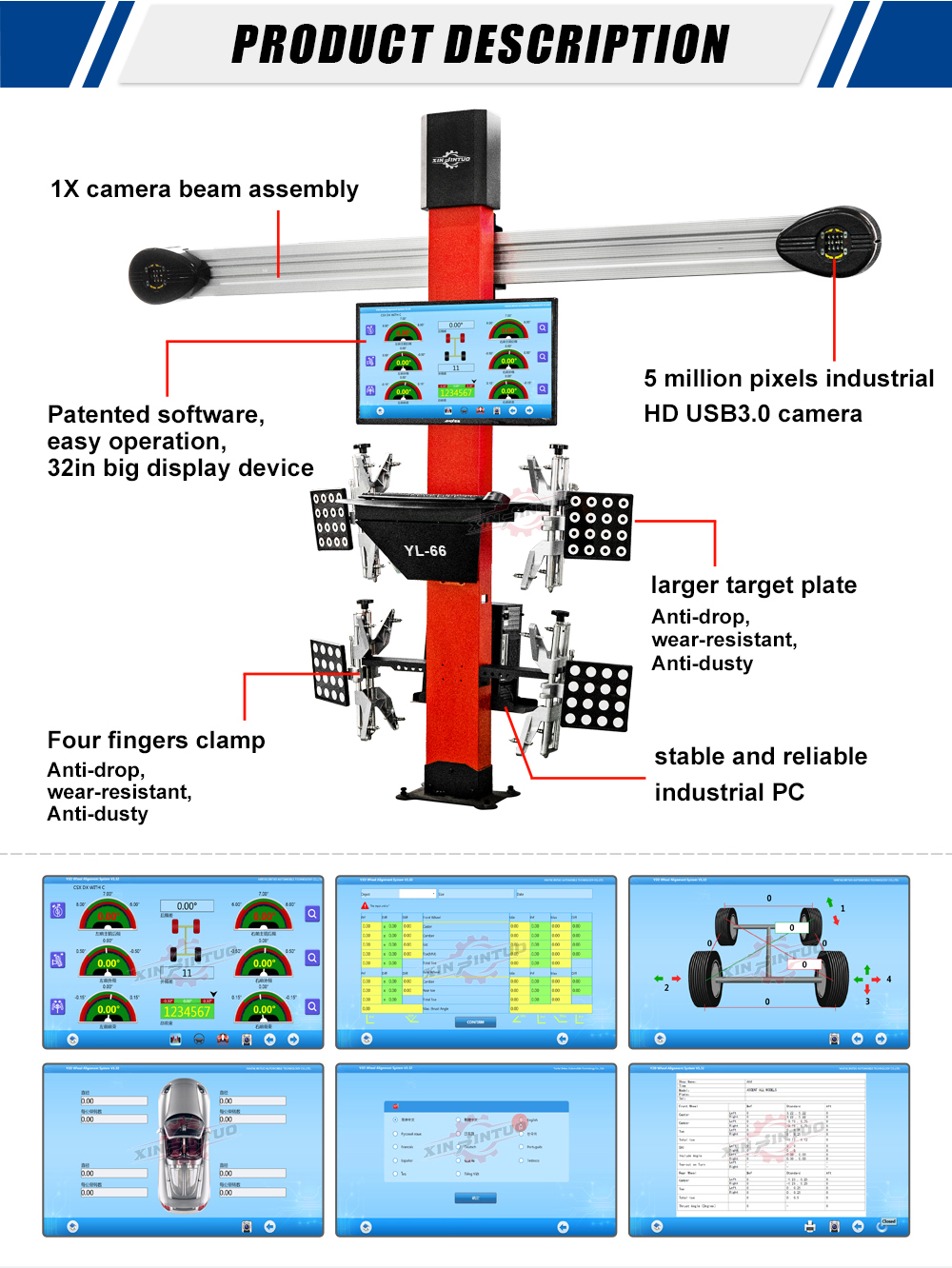

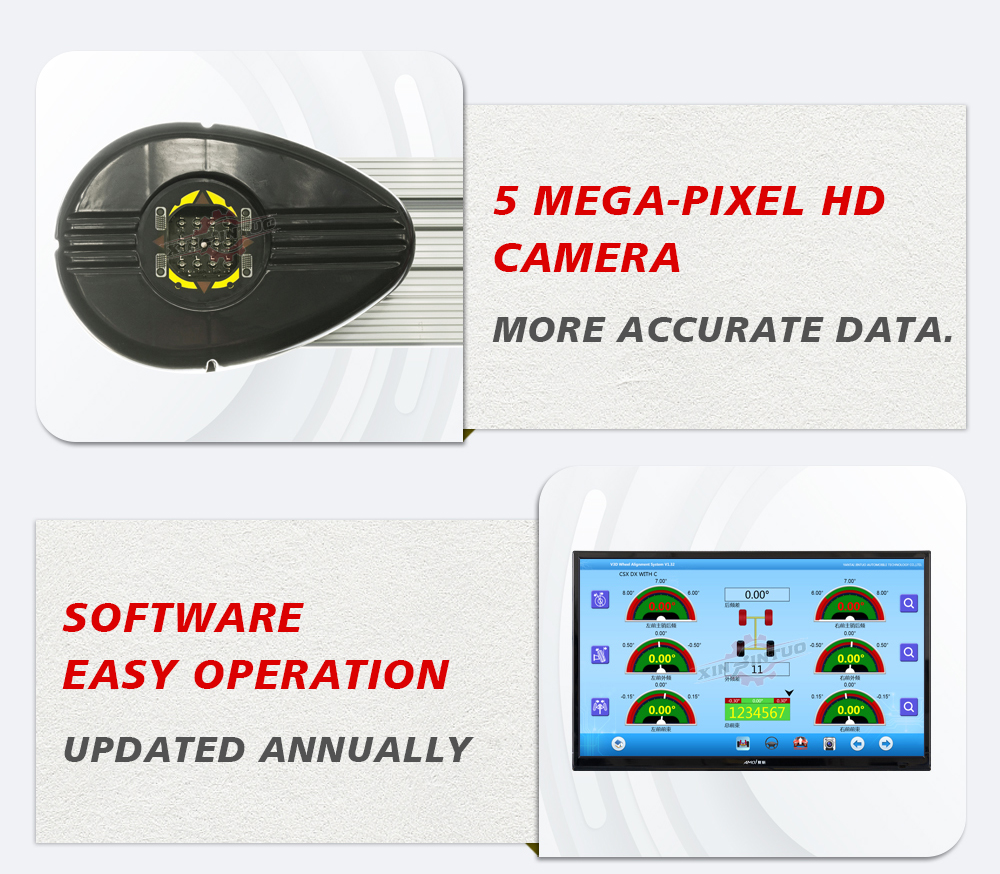

2. Dual display LCD screen, ensure that operators in any Angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.

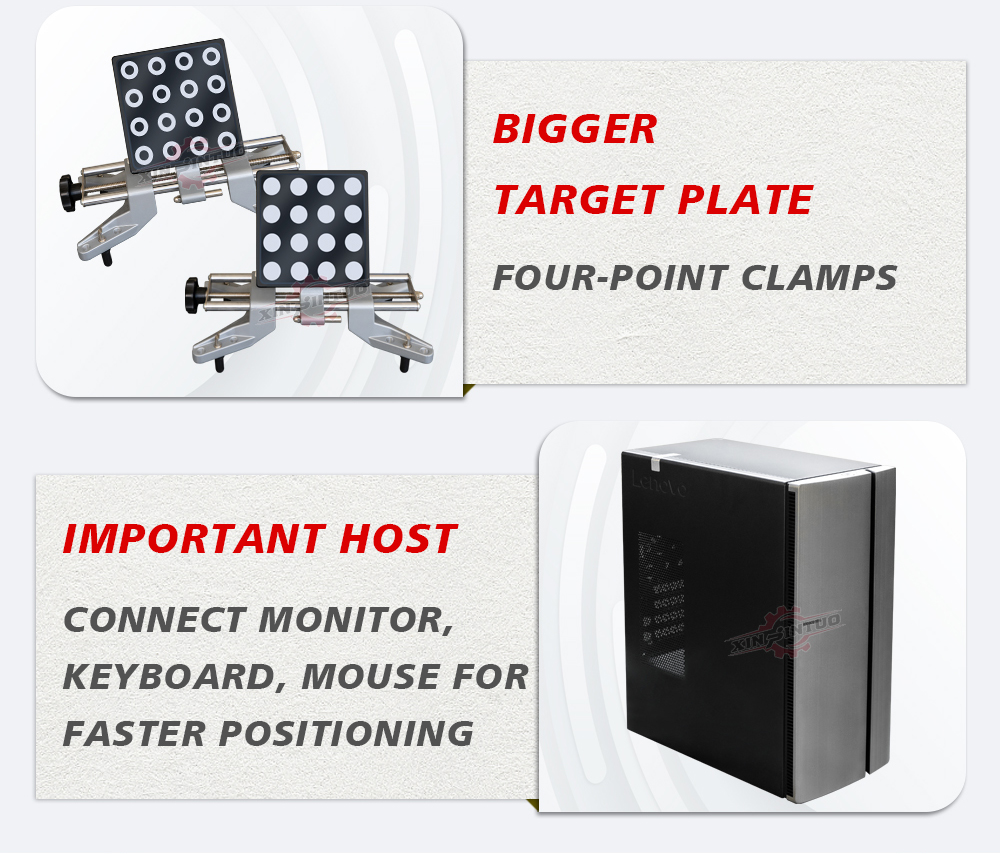

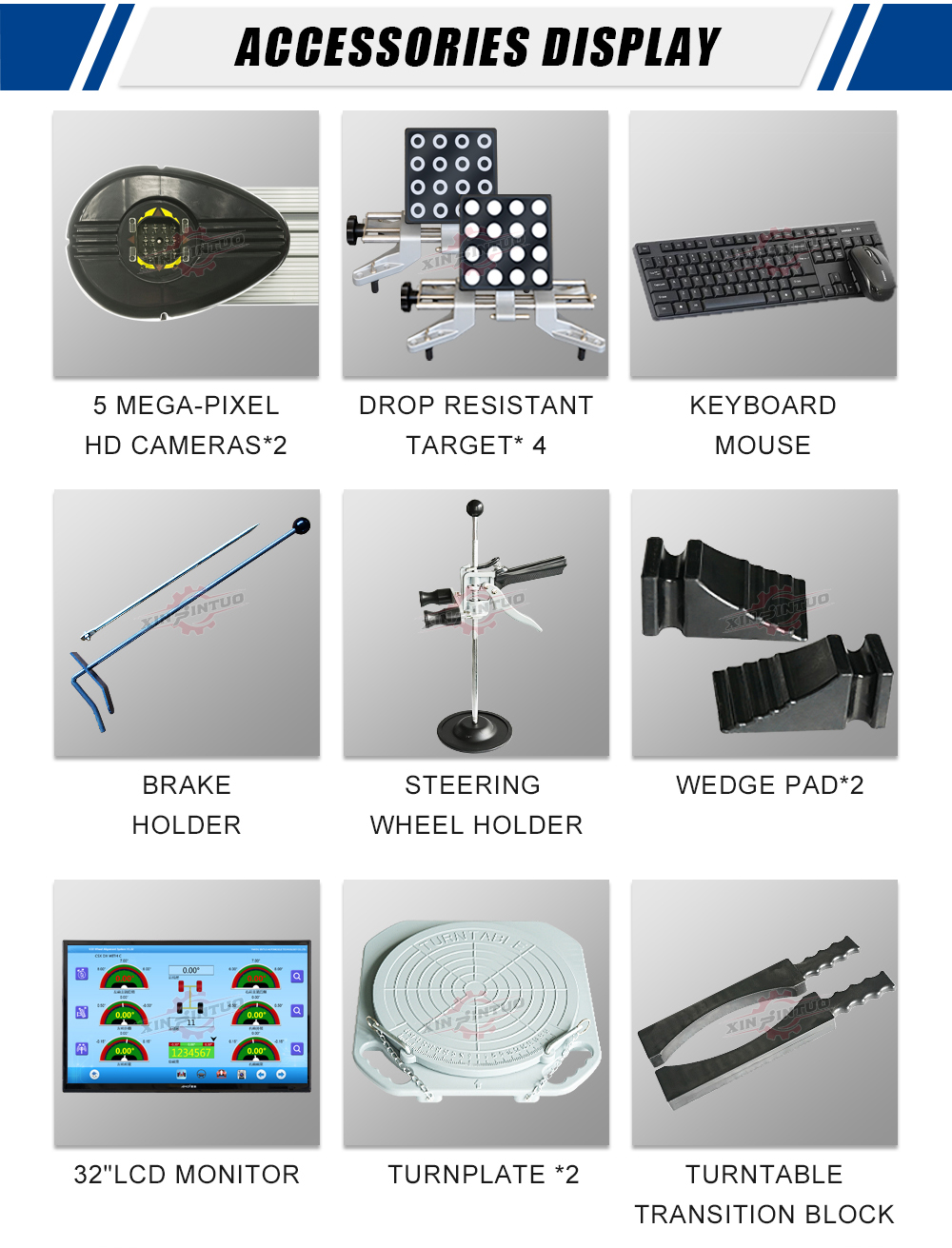

3. Four target plates are made of reinforced plastic shell, aging resistance, long service life;Only detector imaging, no electronic components and connection, strong anti-interference ability.
4. The software is available in multiple languages, including Chinese, English, Spanish, Russian and Portuguese.

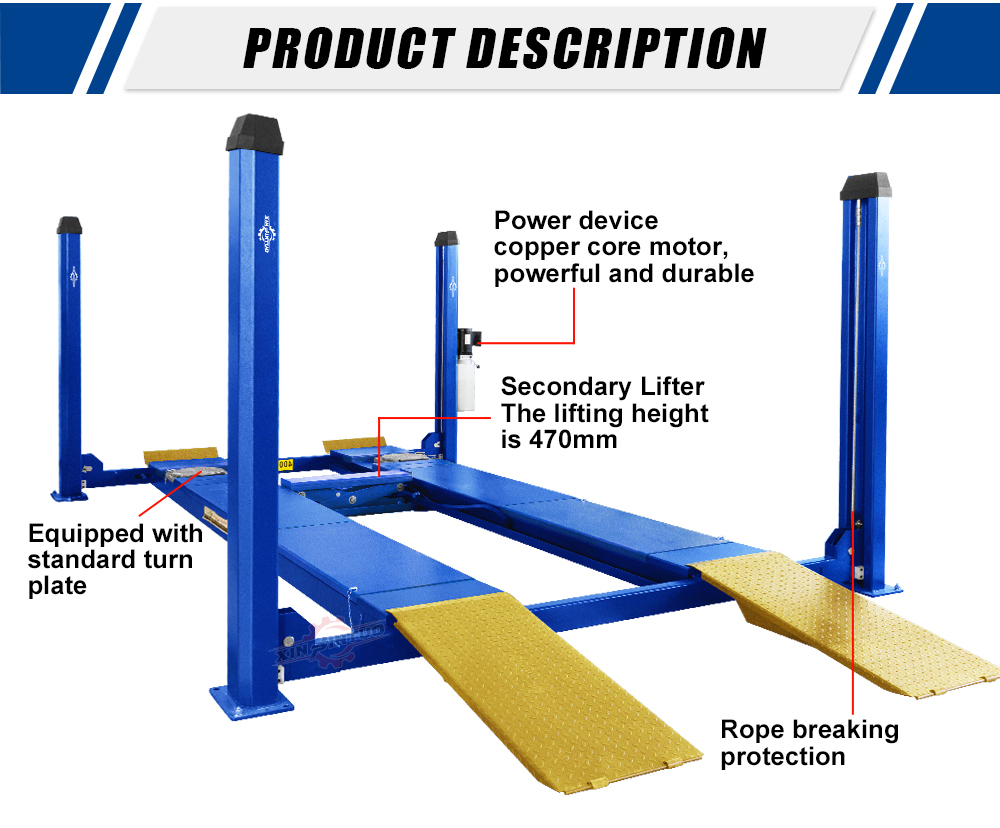

5. With the secondary lift. Lifting height 470mm, smooth lifting, free sliding, suitable for adjusting and repairing tires.

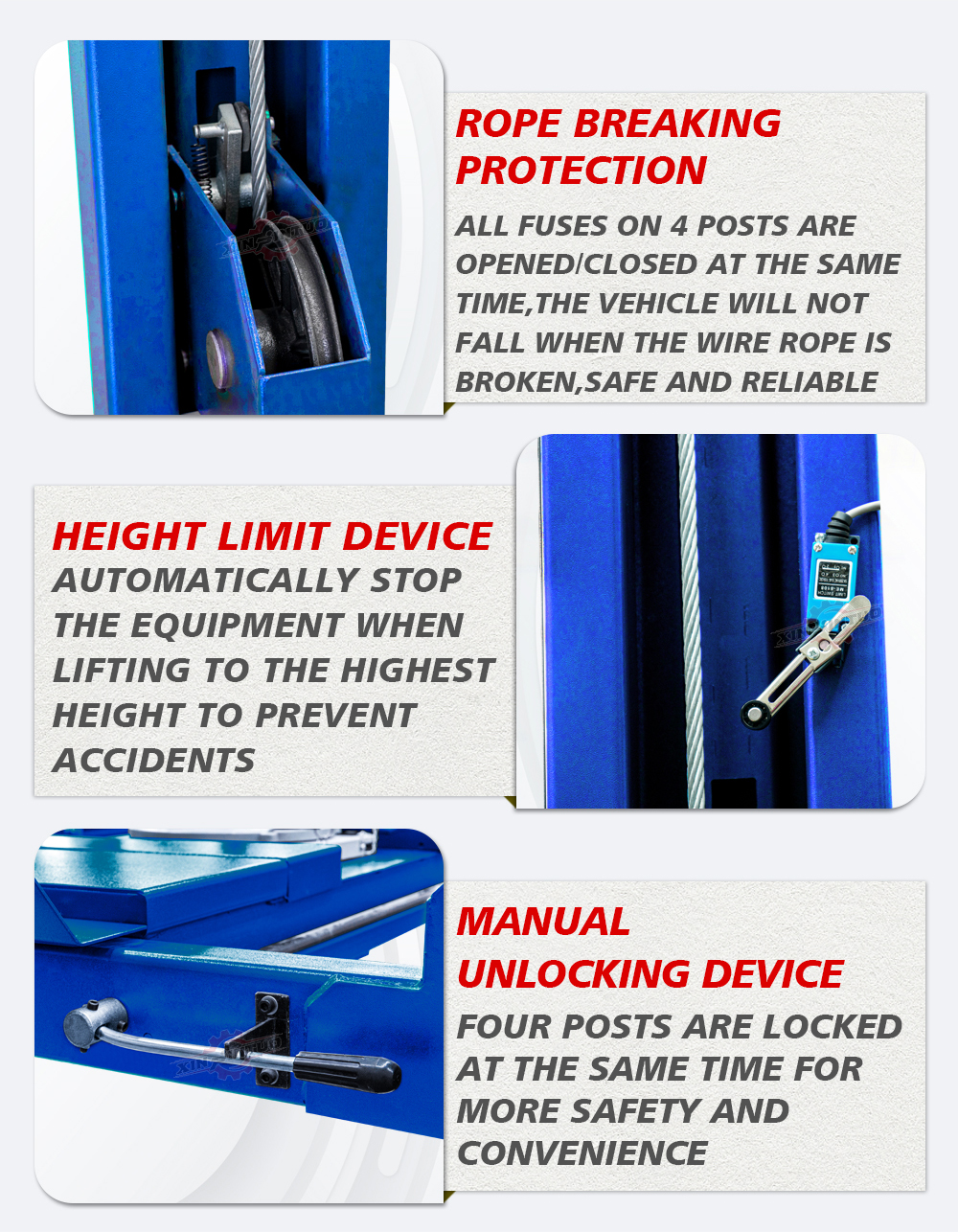

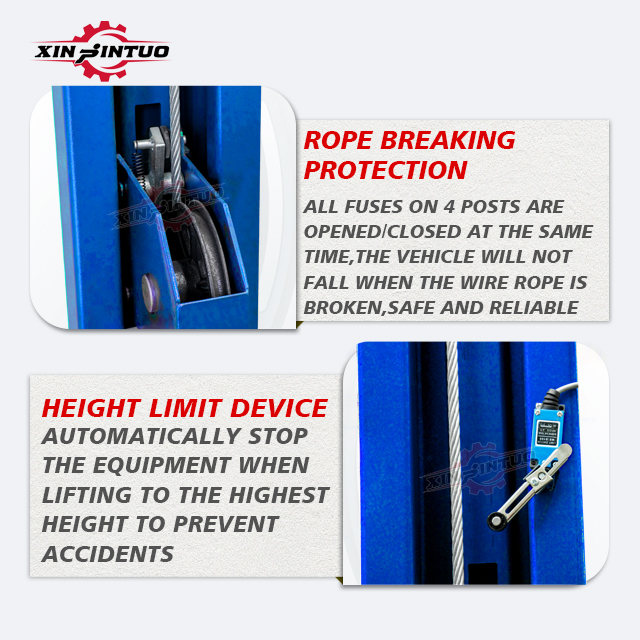

6. Rope breaking protection. All fuses on 4 posts are opened /closed at the same time,the vehicle will not fall when the wire rope is broken,safe and reliable.
7. A transverse sliding device is provided. Adjustable dial position and skateboard, designed for four-wheel positioning purposes. Can be adjusted to ensure the level to achieve four-wheel alignment function.
8. Unilateral lock operation is simple.Manual unlocking device, four pillars lock at the same time more safe and convenient.
9. The platform spacing can be adjusted to accommodate vehicles with different tire spacing.
Please consult the product manager for more product functions and introductions!
