How to choose the auto body frame machine correctly

The quality of the automobile beam aligner. That is what we usually call product quality. Everyone knows that the beam aligner is welded by various types of steel plates, and the steel plates are divided into manganese steel and ordinary steel plates. Whether it is manganese steel plate or ordinary steel plate, as long as the thickness is enough, there will be no problems in the maintenance work. Of course, manganese steel must be better because it is elastic. With good materials, good welding technology is also needed. The quality of a maintenance platform and whether it can be deformed mainly depend on the welding technology. So how to look at it? Look at the length, depth and flatness of the weld. Some companies can weld a device in one day, while some companies do need two people for two days. Why? The wire feeding speed of the welding machine is certain, and the workers are all skilled workers. There is only one explanation. The probability that one person can complete one in one day is cutting corners. After cutting materials, there are fewer welds, and fewer welds dry faster, not to mention that the original weld length is required to be five centimeters, and you only welded one centimeter.

Therefore, such equipment cannot be selected. It must be deformed during the maintenance process. Think about it, will a company that cuts corners pay attention to after-sales service? Undoubtedly, such a company will definitely not pay attention to after-sales service. The platform is deformed, the fixture is damaged, and the oil cylinder is leaking, which greatly reduces the efficiency of our car maintenance. So, what are the things we need to pay attention to when purchasing a car beam aligner?

Device Platform

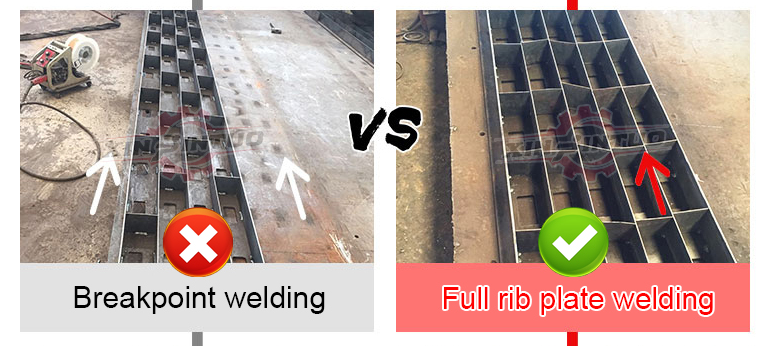

1、Whether the platform is fully welded. The equipment platform with full reinforcement welding has stronger load-bearing capacity, is durable and does not deform.

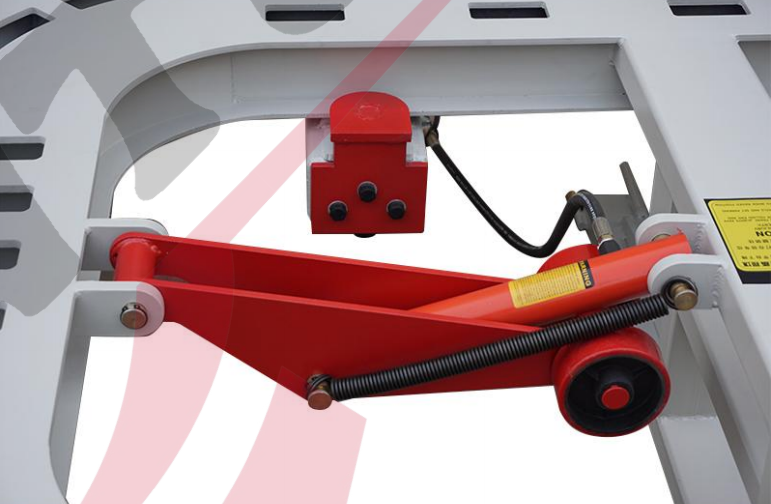

2、Whether the platform corner adopts internal arc design. Compared with the internal right angle, the internal arc design prevents the risk of the tower falling at the corner, making the tower operation smoother and more labor-saving.

The pull tower of the beam aligner.

The deformation of the pull tower does not mean that the column is deformed. The columns are made of 10 thick seamless pipes and will not deform. Instead, the track under the pull tower is deformed.

1、The top rod is made of seamless steel pipe, which has greater bearing capacity than the spliced one. The top crossbeam of the top rod is reinforced with a stiffening plate in the middle to prevent the top from deformation and facilitate the fixing of the boom.

2、Two ribs are added inside the boom to reinforce it. The boom is the stress point to prevent deformation due to stress.

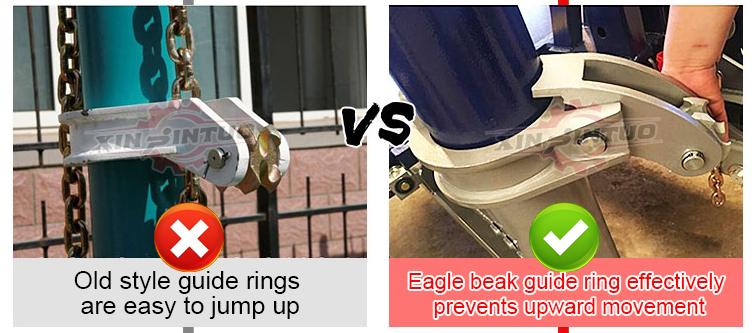

3、The patented guide ring of the Eagle's Beak (12 on top and 12 on bottom) changes the force point compared to the old guide ring. The greater the force, the tighter the connection with the pulling tower, the stronger the reliability, and the guide ring will not jump up, ensuring that the stretching process is safer and ensuring safety during the work process.

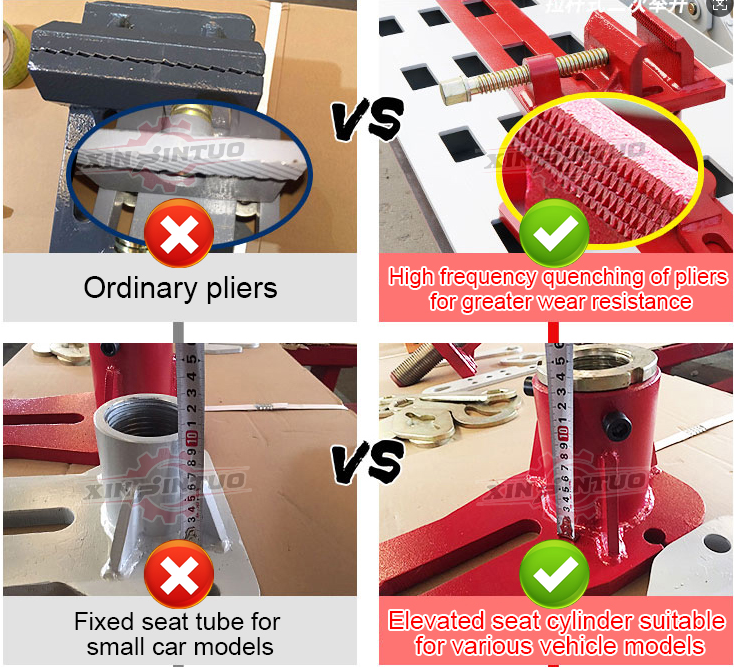

Vise Clamps

For vise clamps, the main clamp is fine as long as it is a large tiger type rather than a small opening type.

1、The vise is equipped with an auxiliary pressure plate, which plays a role of fixing in the opposite direction and reinforces the vise when the pulling force is large.

2、The vise uses a large, thickened seat tube, which is up to 13 cm high. The vise can be adjusted from 28 cm to 40 cm in height, which is convenient for fixing cars with high chassis and reducing the limitations of car repairs. Ordinary vises cannot fix cars with high chassis, and some cars with high chassis cannot be repaired.

Hydraulic system

1、The 2.3-liter large pump works more efficiently than the 1.6-liter pneumatic pump

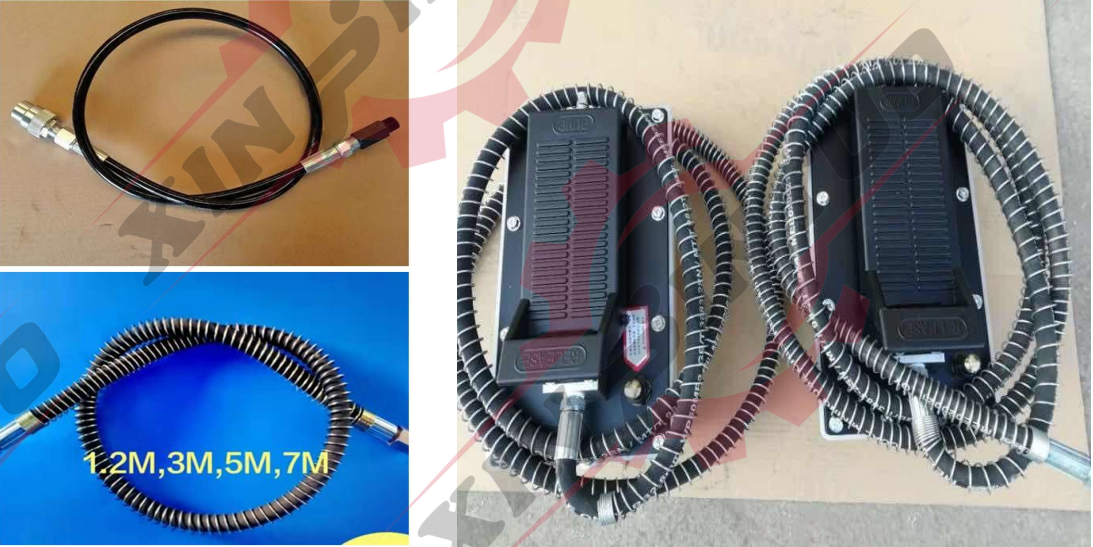

2、The oil pipe is equipped with a spring to prevent damage. It can be dragged back and forth during use to prevent wear and extend its service life.

In short, as long as the platform is not cut corners, the welding point is long enough, and the above points are added, then the quality of this beam aligner is fine. Of course, when purchasing a car beam aligner, in addition to paying attention to the price and quality of the car beam aligner, you should also consider the size of the platform, the number of sheet metal configurations, and how the after-sales warranty is done.

The most popular brands on the market are: Celette , Car-O-Liner , JINTUO, LAUNCH. With years of experience and reputation, they have a very high market share and their product quality is very good. You can choose according to your needs and budget.

In recent years, the number of auto maintenance manufacturers has increased day by day, and some new forces have launched price wars, which will inevitably lead to cutting corners in manufacturing and quality defects. Therefore, we must consider carefully when purchasing. Other low-priced products will inevitably lead to endless problems in maintenance.

Taking the JINTUO brand as an example, the market supply of frame machine will be described.

Yantai Jintuo Auto Technology Co., Ltd. was established in 1996 and is located in Yantai City. The company focuses on the technical research and development, product development, production, sales and service of automobile body repair systems, car lifts and tire equipment. The company has passed the ISO9001 international quality system certification, its products have obtained CE certification, and has a number of national patents. It has a professional R&D team and can provide OEM and ODM services. The equipment produced by the company is sold all over the world and is widely used in major repair shops and 4S auto repair stations at home and abroad. The company has participated in domestic professional equipment exhibitions and the Las Vegas Global Auto Body Repair Exhibition for many years and has received unanimous praise. It has become a world-renowned professional equipment manufacturer.

In the frame machine segment, JINTUO has won the recognition of many car manufacturers, automobile groups and chain enterprises with its innovative technology, reliable quality and perfect service. In China, JINTUO has become the frame machine partner of many automobile brands .
