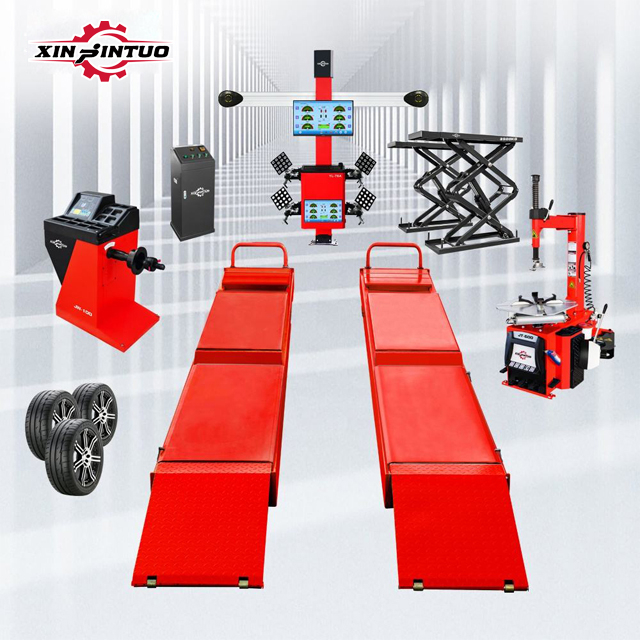

Xinjintuo Auto Tech Tire Service Equipment In One Station

  • YL-76A+JFL-4000A+JT-600+JW518

  • Xinjintuo

Availability:

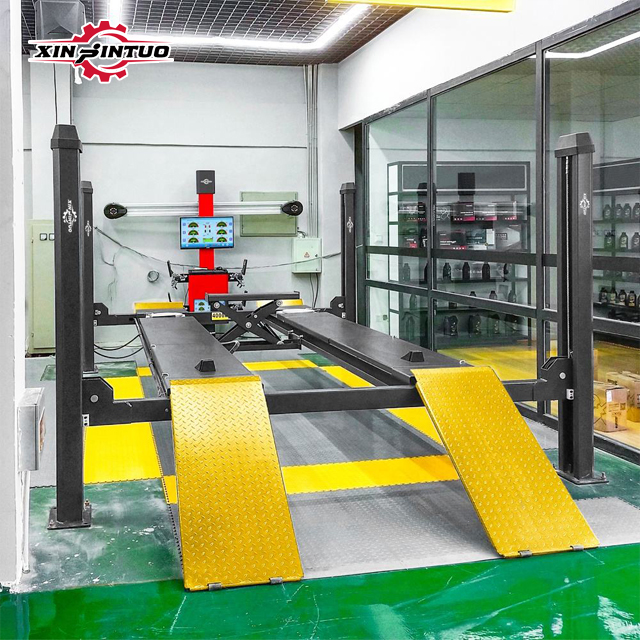

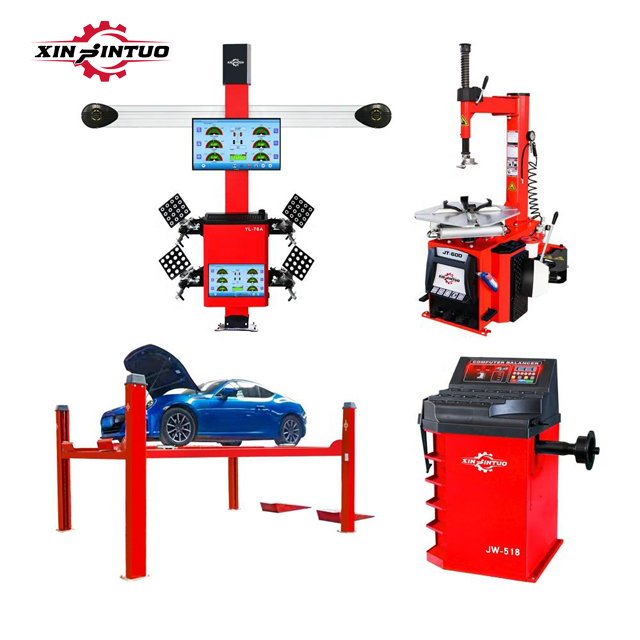

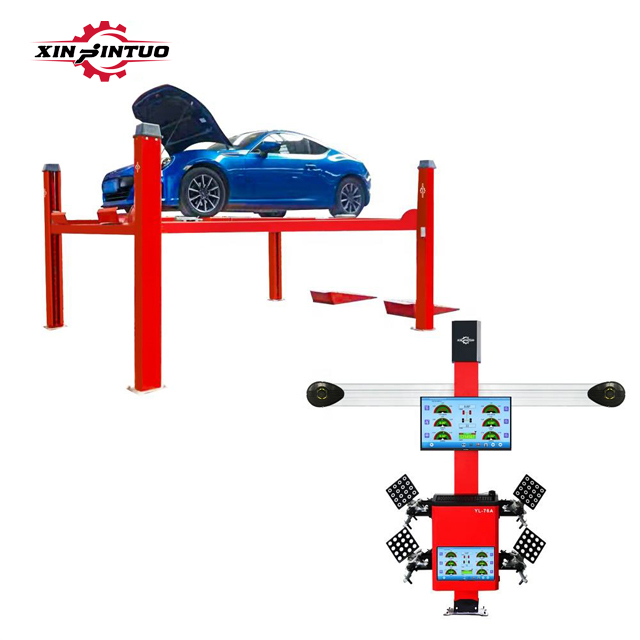

Jintuo hot sale wheel alignment four post car lift tire changer wheel balancer

详情_01详情_02详情_03详情_04详情_03

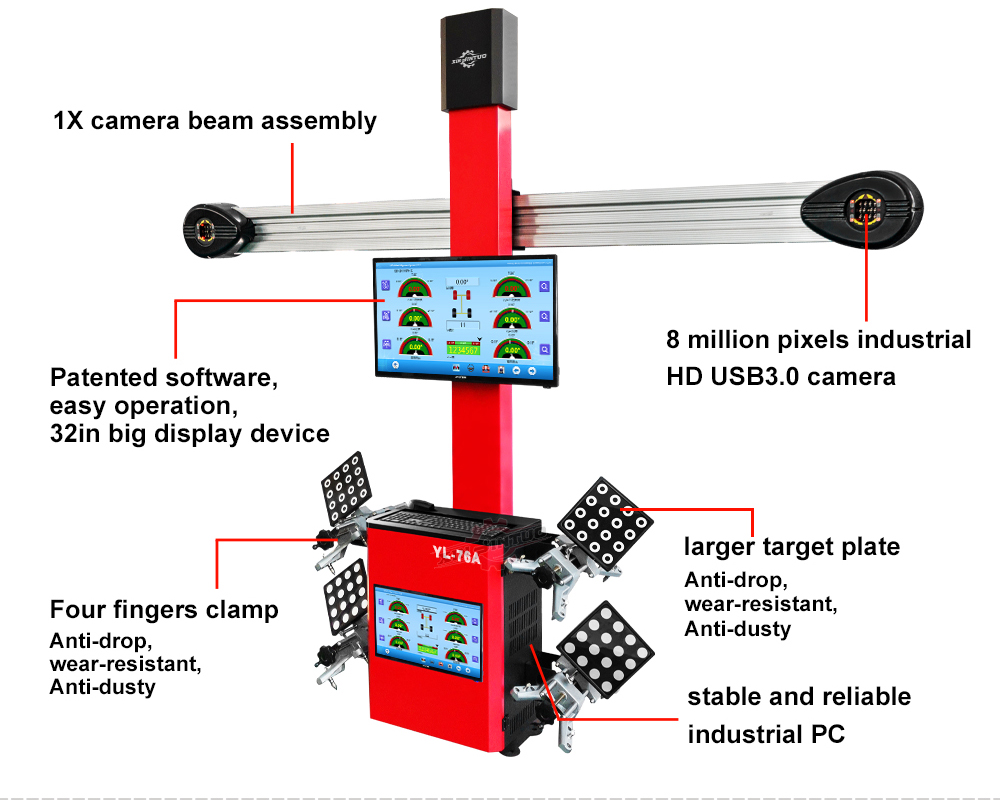

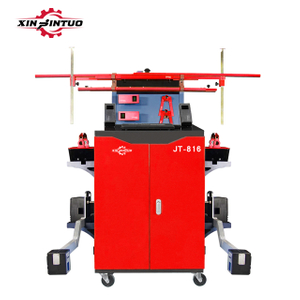

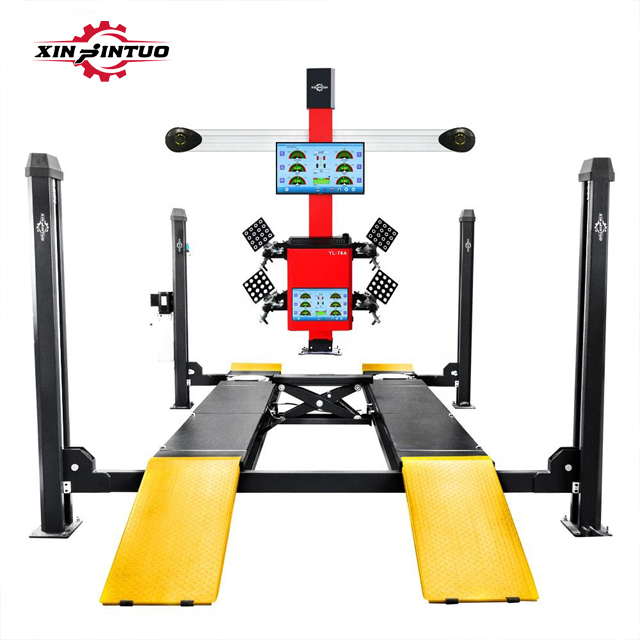

Wheel Alignment Machine Specification

Measurement

Items


Measurement

Accuracy


Measurement

Range


Total Toe

±0.01°

±40°

External Bevel

±0.01°

±45°

Caster

±0.02°

±45°

S.A.I

±0.02°

±45°

Thrust Angle

±0.01°

±40°

Set Back

±0.01°

±40°

Max.Steering

Angle


±0.02°

±50°

Wheelbase ±2° 2006-4572MM
Wheel Track ±2°

1219MM-

2438MM


Packing Dimension

-

880*790*1060MM

2920*360*360MM


1. Suitable for four-wheel positioning. Strong horizontal adjustment ability can precisely adjust the horizontal precision, super suitable for four-wheel positioning and detection. Dual display LCD screen ensures that operators in any angle and the case can clearly identify the data on the screen operation, more convenient for service in the wheel, so as to improve the work efficiency.

2. Four target plates are made of reinforced plastic shel, aging resistance, long service life; Only detector imaging, no electronic components and connection, strong anti-interference ability.

3. The software is available in multiple languages, including Chinese, English, Spanish, Russian, and Portuguese.

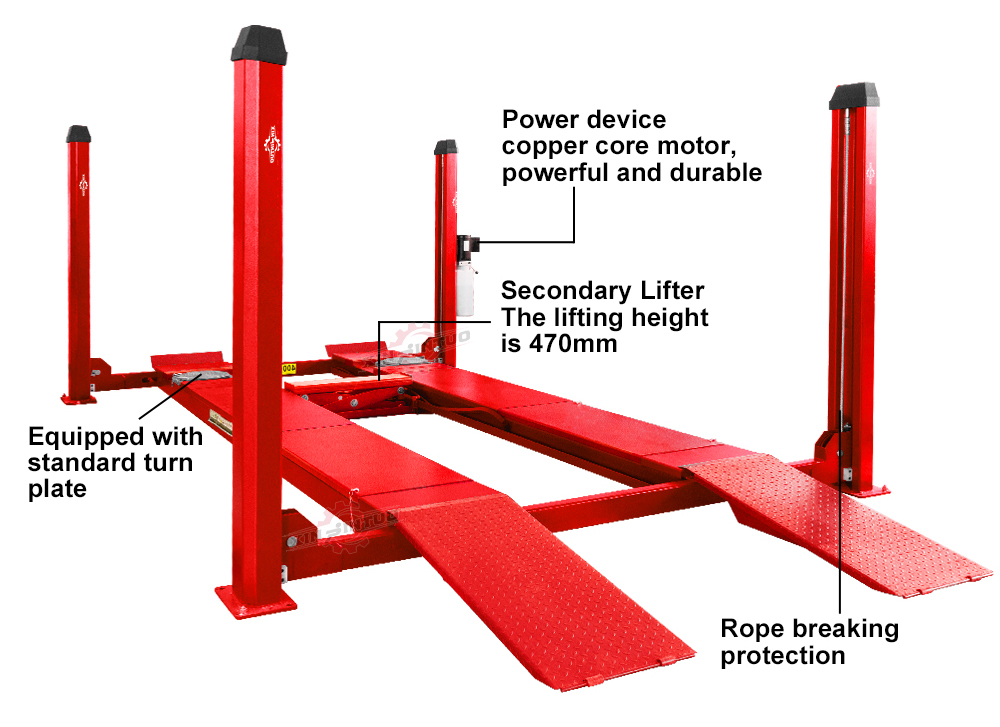

4. With the secondary lift lifting height 470mm, smooth lifting, free sliding, suitable for adjusting and repairing tires.

5. Rope breaking protection. All fuses on 4 posts are opened /closed at the same time, the vehicle will not fall when the wire rope is broken, safe and reliable.

6. A transverse sliding device is provided. Adjustable dial position and skateboard, designed for four-wheel positioning purposes, can be adjusted to ensure the level to achieve four wheel alignment function.

7. Unilateral lock operation is simple. Manual unlocking device, four pilars lock at the same time more safe and convenient.

8. The platform spacing can be adjusted to accommodate vehicles with different tire spacing.

Please consult the product manager for more product functions and introductions!



详情_12详情_13

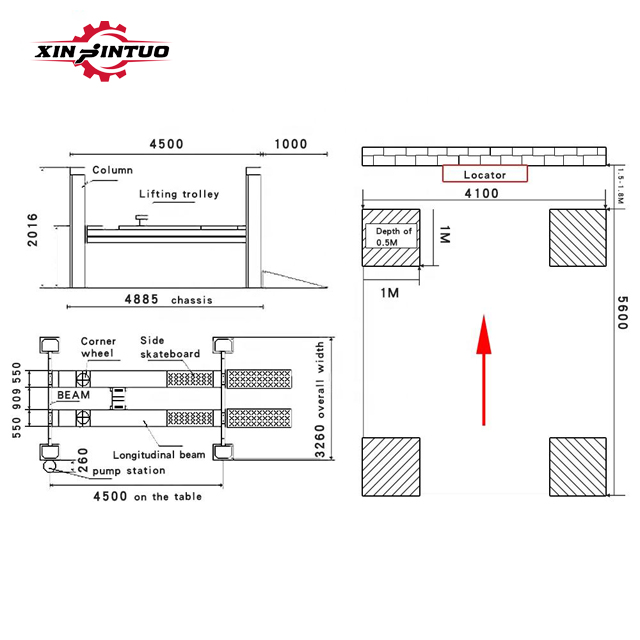

Wheel Alignment Specification
Lifting Capacity 4000KGS
Length of Platform 4200/4500MM
Width of Platform 550MM
Lifting Height 1600MM
Secondary Jack 470MM
Lifting Time 37S
Motor Power 2.2KW
Voltage 220/240/380/415V
Gross Weight 35KGS

1500KGS
Packing Size 4700*650*900MM(1PC)

850*260*240MM(1PC)


详情_19详情_20

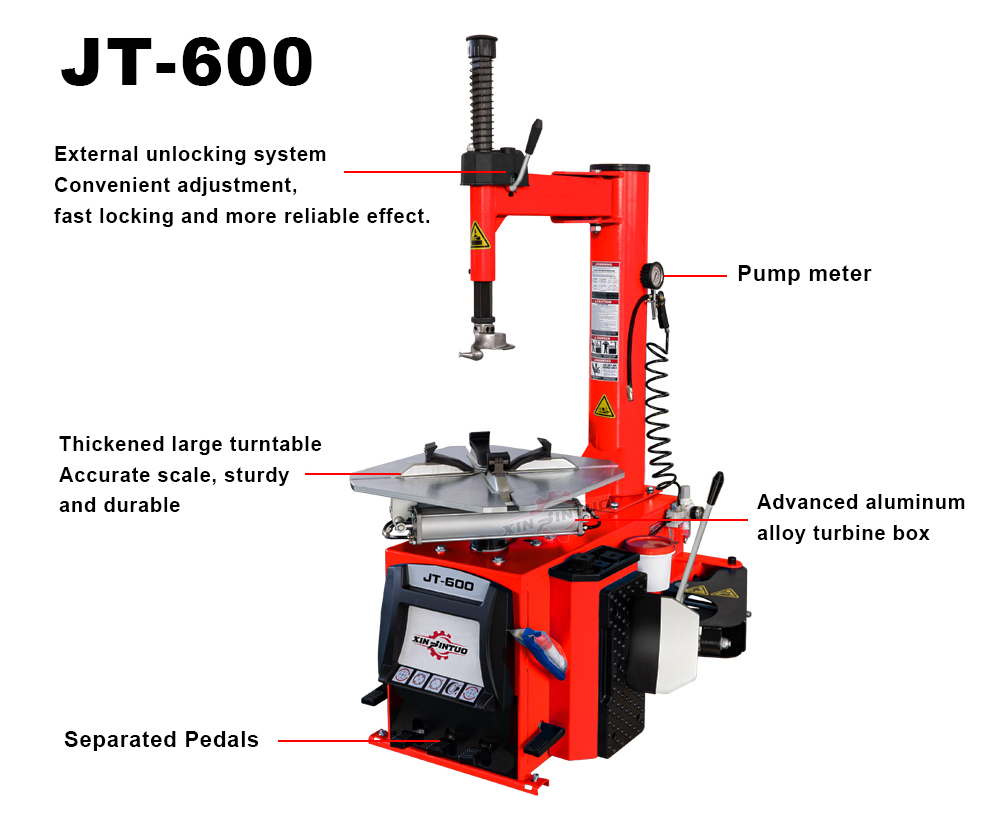

Tire Changer Specification
Inside Clamp 12-24''
Outside Clamp 10-22''
Max. Wheel Diameter 1050MM
Wheel Width 4-13''
Voltage 110V/220V/380V
Gross Weight 220KGS
Packing Dimension 1220*1000*900MM

详情_26详情_27

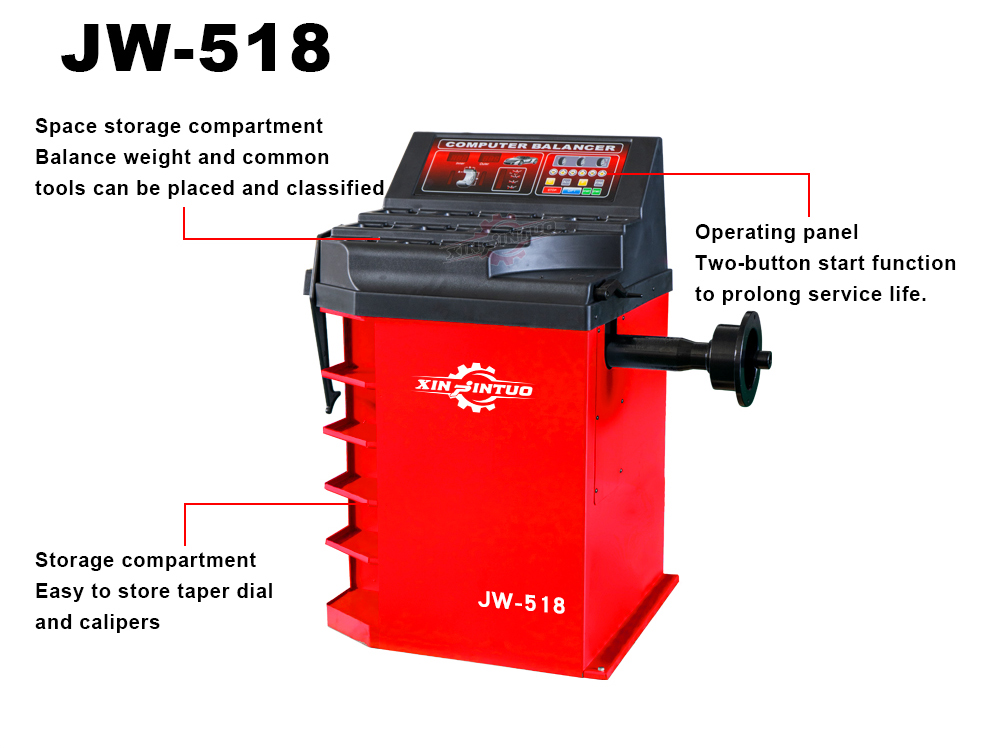

Wheel Balancer Specification
Rim Diameter 10-24''
Max. Wheel Diameter 950MM
Max. Wheel Width 1.5-12''
Gross Weight 120KGS
Power Supply 110V/220V
Packing 1020*700*1120MM

详情_35详情_36详情_37详情_38详情_39详情_40详情_41详情_42详情_43详情_44详情_45
